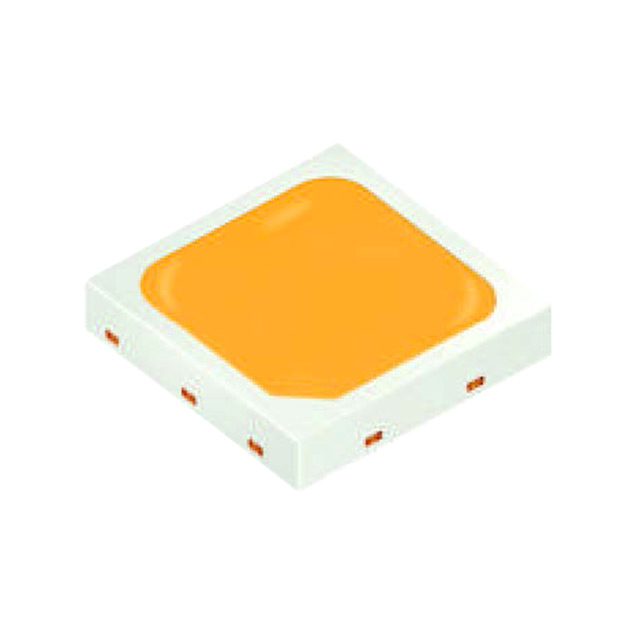

GW PSLPS1.EC-LPLR-6M7N-DF-150-R18-SF-
Obsoleteams-OSRAM USA INC.
LED DURIS S5 SMD
Deep-Dive with AI
Search across all available documentation for this part.
GW PSLPS1.EC-LPLR-6M7N-DF-150-R18-SF-
Obsoleteams-OSRAM USA INC.
LED DURIS S5 SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GW PSLPS1.EC-LPLR-6M7N-DF-150-R18-SF- |
|---|---|
| Color | White |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 200 mA |
| Current - Test | 150 mA |
| Height - Seated (Max) [Max] | 0.7 mm |
| Height - Seated (Max) [Max] | 0.028 in |
| Mounting Type | Surface Mount |
| Package / Case | 1213 |
| Package / Case | 3032 Metric |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [x] | 0.118 in |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Supplier Device Package | SMD |
| Thermal Resistance of Package [custom] | 11 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 6.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
GW PSLPS1.EC-LPLR-6M7N-DF-150-R18-SF-
LED Lighting DURIS® S 5 White 6.1V 150mA 120° 1213 (3032 Metric)
Documents
Technical documentation and resources
No documents available
