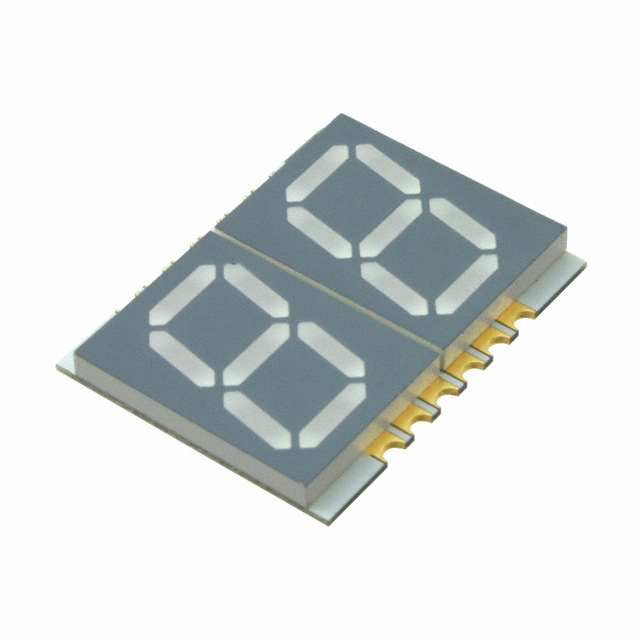

ACDA56-51PBWA/A
ActiveKingbright
DISPLAY 7SEG 0.56" DBL BLU 12SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACDA56-51PBWA/A
ActiveKingbright
DISPLAY 7SEG 0.56" DBL BLU 12SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACDA56-51PBWA/A |
|---|---|
| Color | Blue |
| Common Pin | Common Anode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 0.56 in |
| Digit/Alpha Size | 14.22 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 4 mcd |
| Number of Characters | 2 |
| Package / Case | 12-SMD, No Lead |
| Power Dissipation (Max) [Max] | 120 mW |
| Size / Dimension [x] | 17 mm |
| Size / Dimension [x] | 0.669 " |
| Size / Dimension [y] | 0.996 in |
| Size / Dimension [y] | 25.3 mm |
| Size / Dimension [z] | 2.4 mm |
| Size / Dimension [z] | 0.094 " |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
| Wavelength - Peak | 468 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 11.11 | |
| 10 | $ 8.06 | |||
| 100 | $ 6.66 | |||
| Digi-Reel® | 1 | $ 11.11 | ||
| 10 | $ 8.06 | |||
| 100 | $ 6.66 | |||
| Tape & Reel (TR) | 200 | $ 5.25 | ||
Description
General part information
ACDA56-51PBWA/A
Display Modules - LED Character and Numeric Blue 7-Segment 2 Character Common Anode 3.2V 20mA 0.669" H x 0.996" W x 0.094" D (17.00mm x 25.30mm x 2.40mm) 12-SMD, No Lead
