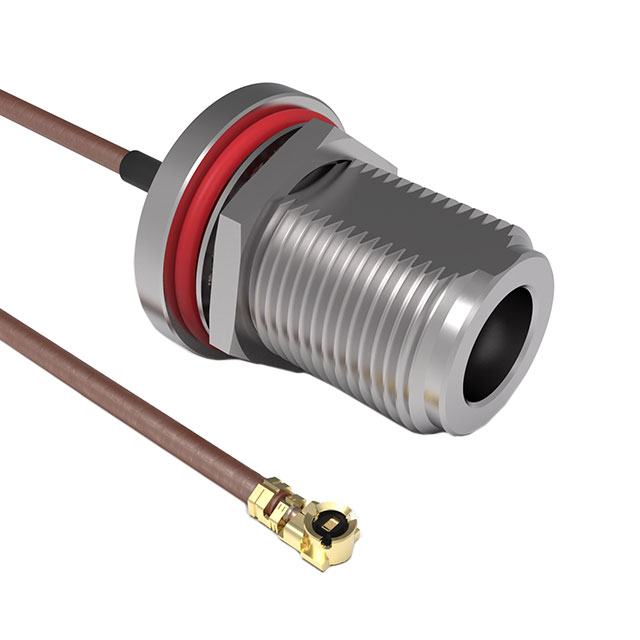

CABLE 329 RF-150-A
ActiveGCT (Gradconn)
COAX CBL MHF1 TO N-TYPE 5.9"
Deep-Dive with AI
Search across all available documentation for this part.
CABLE 329 RF-150-A
ActiveGCT (Gradconn)
COAX CBL MHF1 TO N-TYPE 5.9"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CABLE 329 RF-150-A |
|---|---|
| 1st Connector | N-Type Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | I-PEX MHF1 Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-178 |
| Color | Brown |
| Features | IP Rated Unmated |
| Frequency - Max [Max] | 6000 MHz |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Length [x] | 150 mm |
| Length [x] | 5.906 " |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | I-PEX MHF1 to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 19.90 | |
| 10 | $ 16.91 | |||
| 25 | $ 15.85 | |||
| 50 | $ 15.10 | |||
| 100 | $ 14.38 | |||
| 250 | $ 13.48 | |||
| 500 | $ 12.83 | |||
Description
General part information
CABLE 329 RF-150-A
Cable Assembly Coaxial I-PEX MHF1 to N-Type RG-178 5.906" (150.00mm)
