XE-3101-001
ActiveLABFACILITY
THERMOCOUPLE-K-1.5X150MM-IEC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XE-3101-001
ActiveLABFACILITY
THERMOCOUPLE-K-1.5X150MM-IEC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XE-3101-001 |
|---|---|
| Cable Length | 0.1 m |
| Cable Length | 3.937 in |
| Probe Length | 5.906 in |
| Probe Length | 150 mm |
| Probe Material | Stainless Steel |
| Probe Temperature Range | 392 °F |
| Probe Temperature Range | 200 °C |
| Tip Type | Immersion / Penetration, Rounded |
| Type | K-Type Thermocouple |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 18.63 | |
| 5 | $ 17.27 | |||
| 10 | $ 16.71 | |||
| 25 | $ 16.00 | |||
Description
General part information
XE-3101-001

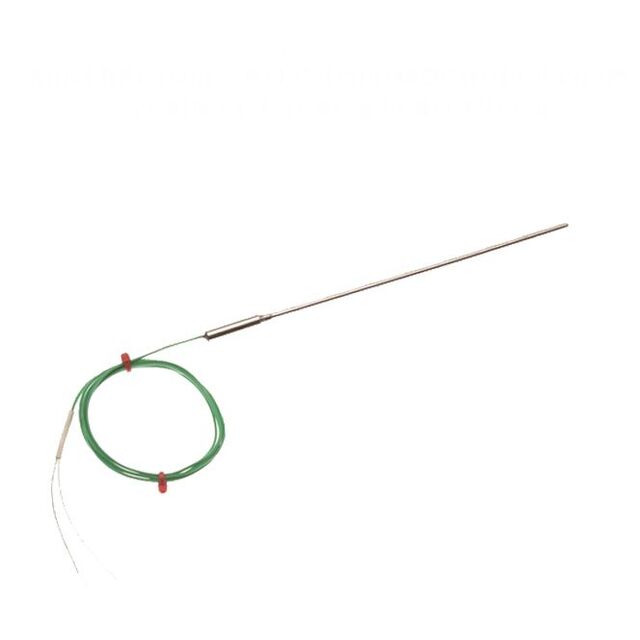

3.937" (100.00mm) K-Type Thermocouple Immersion / Penetration, Rounded 392°F (200°C)
