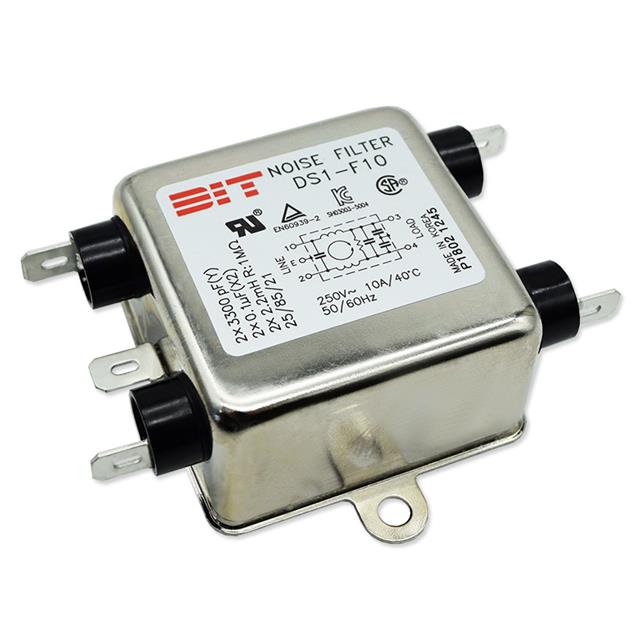

DS1-T10
ActiveDIT
LINE FILTER 250VAC/VDC 10A CHASS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DS1-T10
ActiveDIT
LINE FILTER 250VAC/VDC 10A CHASS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DS1-T10 |
|---|---|
| Applications | General Purpose |
| Approval Agency | UR, CSA, TUV |
| Configuration | Single Stage |
| Current | 10 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Termination Style | Threaded Post (M4) |
| Voltage - Rated AC | 250 V |
| Voltage - Rated DC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 14.87 | |
| 10 | $ 12.63 | |||
| 25 | $ 11.84 | |||
| 50 | $ 11.28 | |||
| 100 | $ 10.74 | |||
| 250 | $ 10.07 | |||
| 500 | $ 9.59 | |||
| 1000 | $ 9.13 | |||
Description
General part information
DS1-T10
Single Phase EMC/EMI Line Filter 10 A 250V 250V 50 ~ 60Hz Single Stage Threaded Post (M4)
Documents
Technical documentation and resources
