NDMB252100
ActiveAmphenol ICC (Commercial Products)

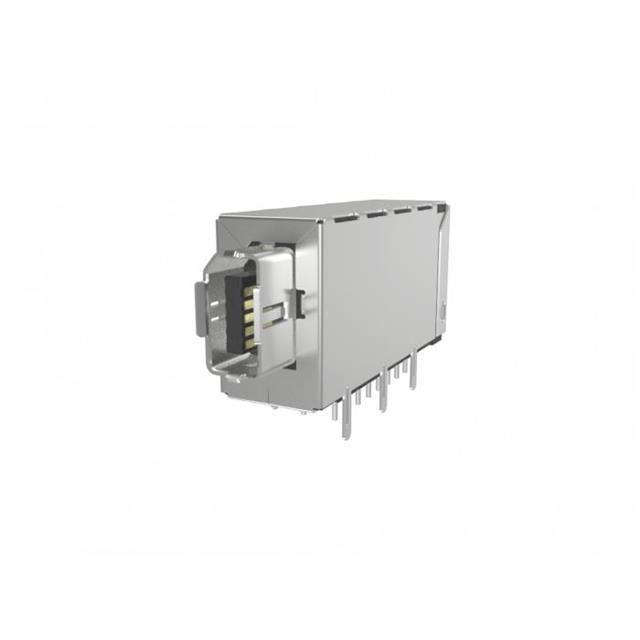

IX MAG RECEPTACLE, TYPE B RA FLA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NDMB252100
ActiveAmphenol ICC (Commercial Products)
IX MAG RECEPTACLE, TYPE B RA FLA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NDMB252100 |
|---|---|
| Connector Style | Receptacle |
| Connector Type | Multi-Purpose |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Features | Solder Retention, Board Guide |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Positions | 10 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 13.19 | |
| 10 | $ 11.69 | |||
| 25 | $ 11.24 | |||
| 78 | $ 10.79 | |||
| 156 | $ 10.19 | |||
| 234 | $ 9.29 | |||
| 468 | $ 8.69 | |||
| 1014 | $ 7.97 | |||
Description
General part information
NDMB252100
10 Position Multi-Purpose Receptacle Connector Solder Surface Mount, Right Angle; Through Hole
