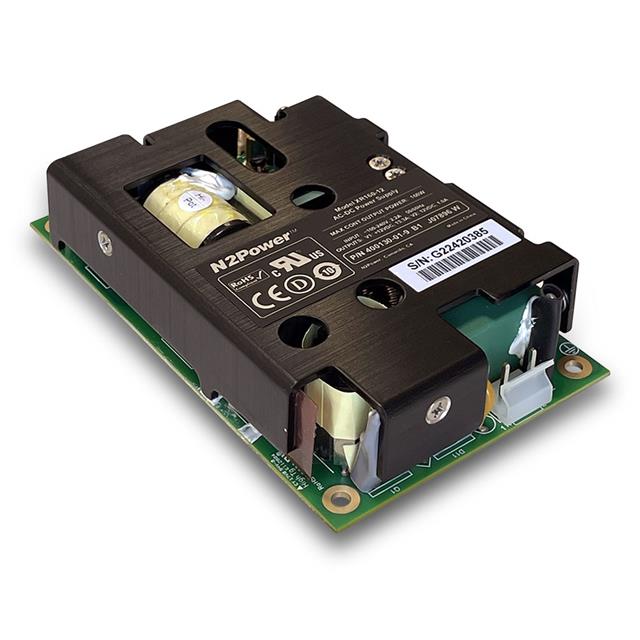

400130-01-9
ActiveN2Power
AC/DC CONVERTER 12V 172W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
400130-01-9
ActiveN2Power
AC/DC CONVERTER 12V 172W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 400130-01-9 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus |
| Current - Output 1 | 13.3 A |
| Efficiency | 86 % |
| Features | Remote On/Off, Standby Output, PFC, Universal Input, Remote Sense |
| Minimum Load Required | True |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 172 W |
| Size / Dimension [x] | 5 in |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [y] | 3 " |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [z] | 33.5 mm |
| Size / Dimension [z] | 1.32 in |
| Standard Number | 60950-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 127.30 | |
Description
General part information
400130-01-9
Enclosed AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
