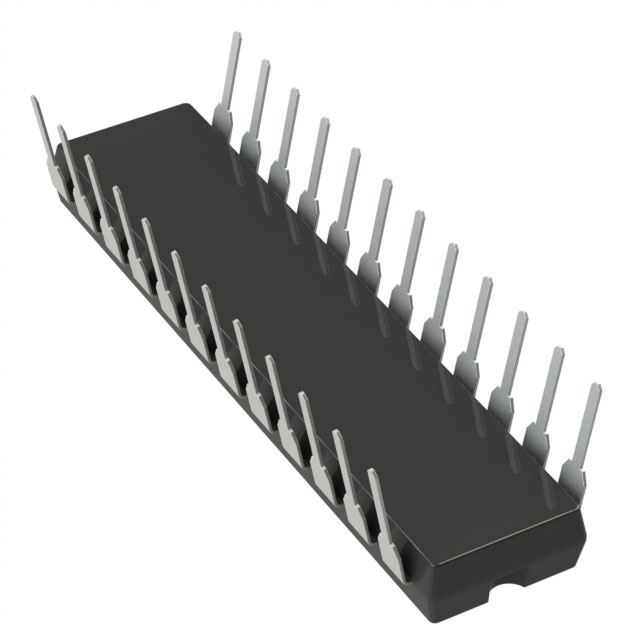

AD767KN
ObsoleteAnalog Devices
IC DAC 12BIT V-OUT 24DIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AD767KN
ObsoleteAnalog Devices
IC DAC 12BIT V-OUT 24DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AD767KN |
|---|---|
| Architecture | Current Steering |
| Data Interface | Parallel |
| Differential Output | False |
| INL/DNL (LSB) | |
| Mounting Type | Through Hole |
| Number of Bits | 12 bits |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Output Type | Voltage - Buffered |
| Package / Case | 0.3 in |
| Package / Case | 24-DIP |
| Package / Case | 7.62 mm |
| Reference Type | External, Internal |
| Settling Time | 3 µs |
| Supplier Device Package | 24-PDIP |
| Voltage - Supply, Analog [Max] | 16.5 V |
| Voltage - Supply, Analog [Min] | -11.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AD767KN
12 Bit Digital to Analog Converter 1 24-PDIP
