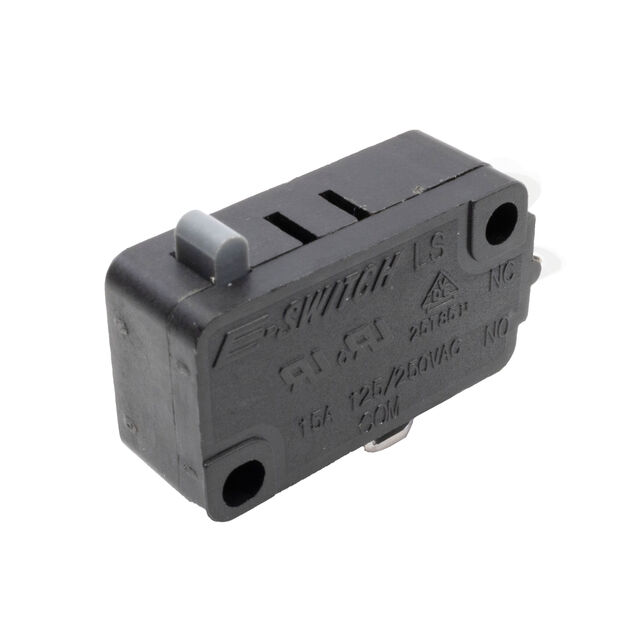

LS0851500F250S1A
ActiveE-Switch
SWITCH SNAP ACTION SPDT 15A 125V
Deep-Dive with AI
Search across all available documentation for this part.
LS0851500F250S1A
ActiveE-Switch
SWITCH SNAP ACTION SPDT 15A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LS0851500F250S1A |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating (Amps) | 15 A |
| Electrical Life | 50000 Cycles |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 0.25 kgf |
| Operating Position | 0.579 in |
| Operating Position | 14.7 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pretravel | 2 mm |
| Pretravel | 0.08 in |
| Release Force | 50 gf |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.15 | |
| 10 | $ 1.98 | |||
| 25 | $ 1.86 | |||
| 50 | $ 1.82 | |||
| 100 | $ 1.44 | |||
| 300 | $ 1.36 | |||
| 500 | $ 1.28 | |||
| 1000 | $ 1.20 | |||
| 5000 | $ 1.11 | |||
Description
General part information
LS0851500F250S1A
Switch SPDT Chassis Mount
Documents
Technical documentation and resources
No documents available
