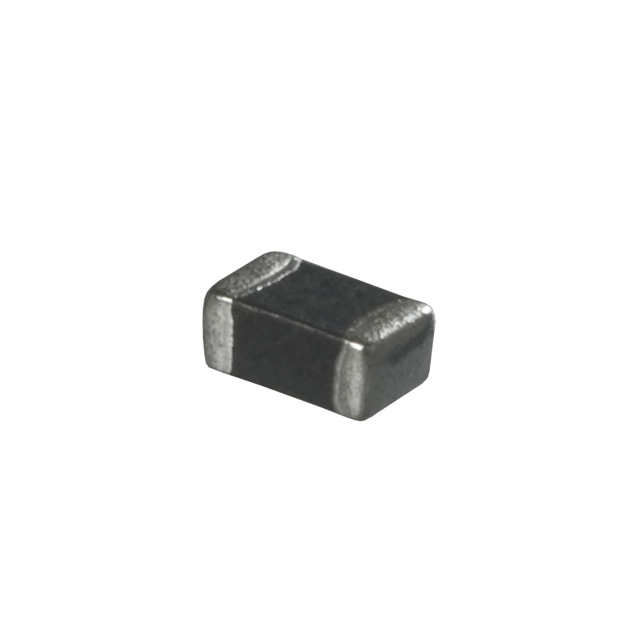

LI0603G800R-00
ObsoleteLaird Technologies - Thermal Materials
FERRITE BEAD 80 OHM 0603 1LN
Deep-Dive with AI
Search across all available documentation for this part.
LI0603G800R-00
ObsoleteLaird Technologies - Thermal Materials
FERRITE BEAD 80 OHM 0603 1LN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LI0603G800R-00 |
|---|---|
| Current Rating (Max) [Max] | 700 mA |
| DC Resistance (DCR) (Max) [Max] | 200 mOhm |
| Filter Type | Signal Line, Power |
| Height (Max) | 0.95 mm |
| Height (Max) [Max] | 0.037 in |
| Impedance @ Frequency | 80 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [y] | 0.032 in |
| Size / Dimension [y] | 0.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LI0603G800R-00
80 Ohms @ 100 MHz 1 Power, Signal Line Ferrite Bead 0603 (1608 Metric) 700mA 200mOhm
