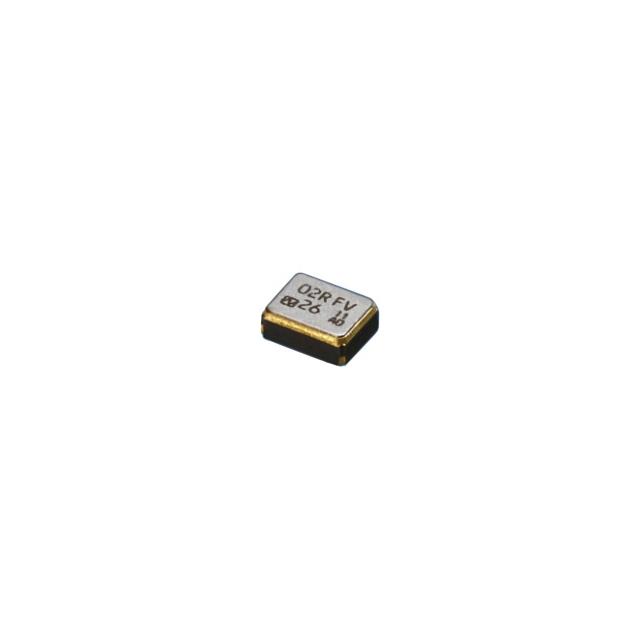

NSC5350D-50M
ActiveNDK America, Inc.
XTAL OSC TCXO 50.0000MHZ SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NSC5350D-50M
ActiveNDK America, Inc.
XTAL OSC TCXO 50.0000MHZ SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NSC5350D-50M |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 2.2 mA |
| Frequency | 50 MHz |
| Frequency Stability | 500 ppb |
| Height - Seated (Max) [Max] [z] | 0.8 mm |
| Height - Seated (Max) [Max] [z] | 0.031 " |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Output | Clipped Sine Wave |
| Package / Case | 4-SMD, No Lead |
| Ratings | AEC-Q100, AEC-Q200 |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Type | TCXO |
| Voltage - Supply | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.97 | |
| 10 | $ 1.70 | |||
| 50 | $ 1.53 | |||
| 100 | $ 1.47 | |||
| 500 | $ 1.33 | |||
| 1000 | $ 1.27 | |||
| Digi-Reel® | 1 | $ 1.97 | ||
| 10 | $ 1.70 | |||
| 50 | $ 1.53 | |||
| 100 | $ 1.47 | |||
| 500 | $ 1.33 | |||
| 1000 | $ 1.27 | |||
| Tape & Reel (TR) | 3000 | $ 1.18 | ||
| 6000 | $ 1.13 | |||
| 9000 | $ 1.10 | |||
Description
General part information
NSC5350D-50M
50 MHz TCXO Clipped Sine Wave Oscillator 1.8V 4-SMD, No Lead
