01299
ActiveSimpson Electric

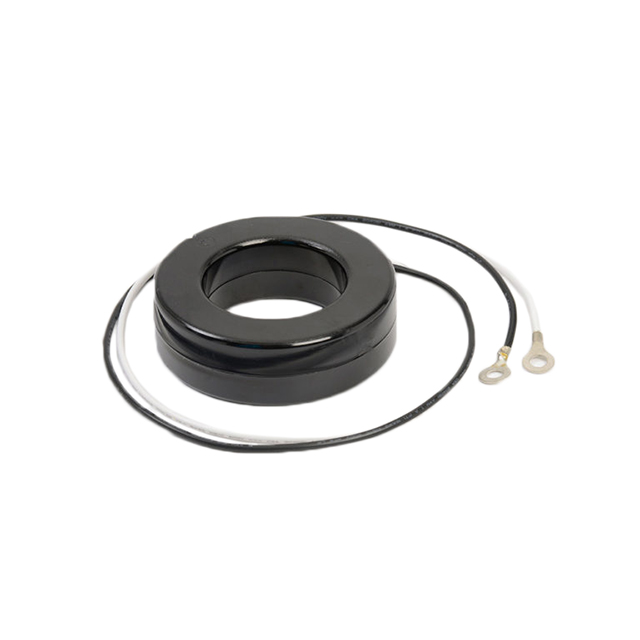

CURR SENSE XFMR 40:1 200A INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
01299
ActiveSimpson Electric
CURR SENSE XFMR 40:1 200A INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 01299 |
|---|---|
| Current Rating (Amps) | 200 A |
| Height - Seated (Max) [Max] [z] | 27.94 mm |
| Height - Seated (Max) [Max] [z] | 1.1 in |
| Mounting Type | Free Hanging (In-Line) |
| Size / Dimension [diameter] | 90.42 mm |
| Size / Dimension [diameter] | 3.56 in |
| Termination Style | Wire Leads |
| Turns Ratio - Primary:Secondary [custom] | 40 |
| Turns Ratio - Primary:Secondary [custom] | 1 |
| Type | Non-Invasive (Solid Core) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
01299
200 A 40:1 Current Sense Transformer Free Hanging (In-Line)
