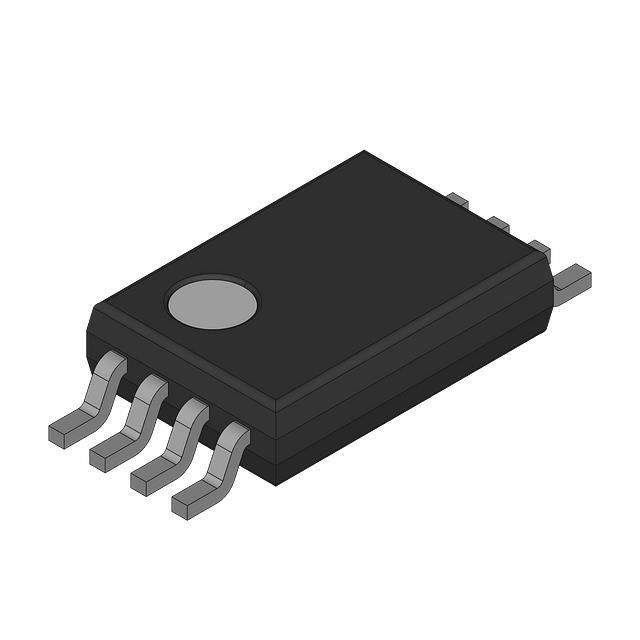

ISL43122IHZ-T

Obsolete

Intersil

IC SW SPST-NO/NCX2 20OHM SOT23-8

Search across all available documentation for this part.

Obsolete

Intersil

IC SW SPST-NO/NCX2 20OHM SOT23-8

Technical Specifications

Parameters and characteristics for this part

Specification	ISL43122IHZ-T

Channel Capacitance (CS(off), CD(off)) [custom]	8 pF
Channel Capacitance (CS(off), CD(off)) [custom]	8 pF
Channel-to-Channel Matching (ΔRon)	800 mOhm
Charge Injection	5 pC
Crosstalk	-105 dB
Current - Leakage (IS(off)) (Max)	100 pA
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	2
On-State Resistance (Max) [Max]	20 Ohm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	SOT-23-8
Supplier Device Package	SOT-23-8
Switch Circuit	SPST - NO/NC
Switch Time (Ton, Toff) (Max) [custom]	35 ns
Switch Time (Ton, Toff) (Max) [custom]	30 ns
Voltage - Supply, Single (V+) [Max]	12 V
Voltage - Supply, Single (V+) [Min]	2.7 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	224	$ 1.34

General part information

2 Circuit IC Switch 1:1 20Ohm SOT-23-8

Technical documentation and resources

No documents available
