SL125R005
ActiveAMETHERM
ICL 5 OHM 20% 5A 13MM
Deep-Dive with AI
Search across all available documentation for this part.
SL125R005
ActiveAMETHERM
ICL 5 OHM 20% 5A 13MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SL125R005 |
|---|---|
| Current - Steady State Max | 5 A |
| Diameter [diameter] | 0.512 in |
| Diameter [diameter] | 13 mm |
| Lead Spacing | 0.307 in |
| Lead Spacing | 7.8 mm |
| R @ 25°C | 5 Ohms |
| R @ Current | 150 mOhms |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 0.88 | |
| 5 | $ 0.73 | |||
| 10 | $ 0.67 | |||
| 50 | $ 0.56 | |||
| 200 | $ 0.48 | |||
| 400 | $ 0.44 | |||
| 600 | $ 0.42 | |||
| 1000 | $ 0.39 | |||
| 5000 | $ 0.33 | |||
Description
General part information
SL125R005

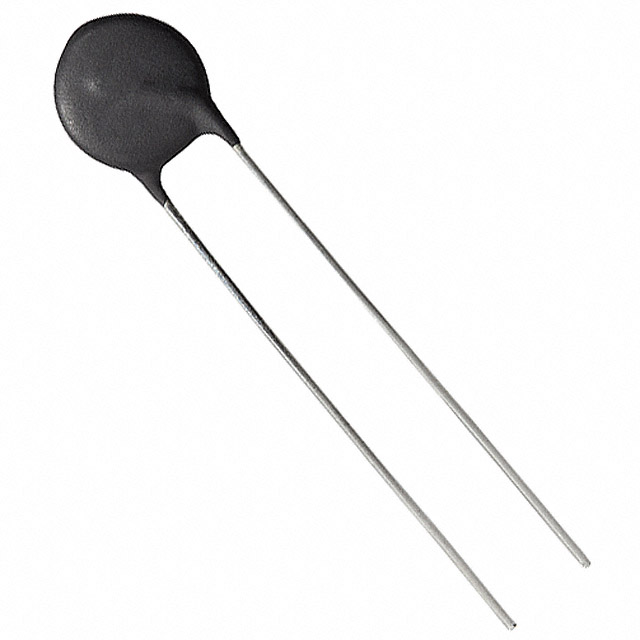

Inrush Current Limiter 5 Ohms ±20% 5 A 0.512" (13.00mm)
Documents
Technical documentation and resources
