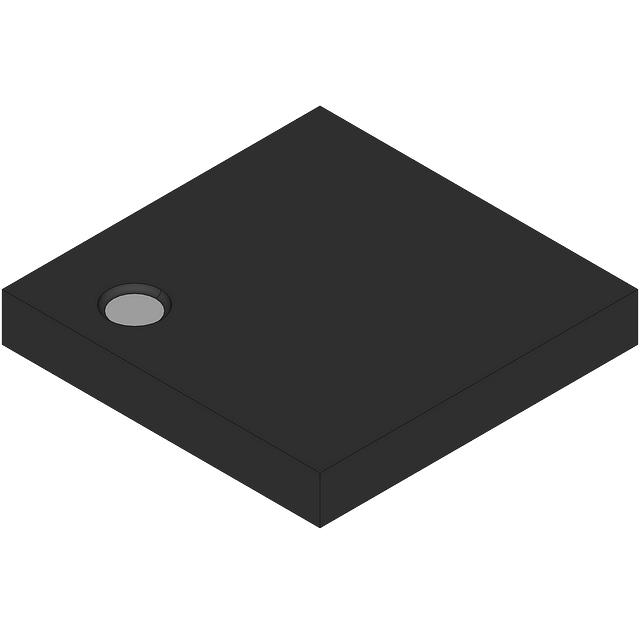

ISL54056IRUZ-T
ObsoleteIntersil
IC SWITCH SPDTX4 550MOHM 16UTQFN
Deep-Dive with AI
Search across all available documentation for this part.
ISL54056IRUZ-T
ObsoleteIntersil
IC SWITCH SPDTX4 550MOHM 16UTQFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ISL54056IRUZ-T |
|---|---|
| Channel Capacitance (CS(off), CD(off)) [custom] | 38 pF |
| Channel Capacitance (CS(off), CD(off)) [custom] | 38 pF |
| Channel-to-Channel Matching (ΔRon) | 50 mOhm |
| Charge Injection | 248 pC |
| Crosstalk | -85 dB |
| Current - Leakage (IS(off)) (Max) [Max] | 70 nA |
| Mounting Type | Surface Mount |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) [Max] | 550 mOhms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-UFQFN |
| Supplier Device Package | 16-UTQFN (2.6x1.8) |
| Switch Circuit | SPDT |
| Switch Time (Ton, Toff) (Max) [custom] | 33 ns |
| Switch Time (Ton, Toff) (Max) [custom] | 16 ns |
| Voltage - Supply, Single (V+) [Max] | 4.5 V |
| Voltage - Supply, Single (V+) [Min] | 1.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 87 | $ 3.47 | |
Description
General part information
ISL54056IRUZ-T
4 Circuit IC Switch 2:1 550mOhm 16-UTQFN (2.6x1.8)
Documents
Technical documentation and resources
No documents available
