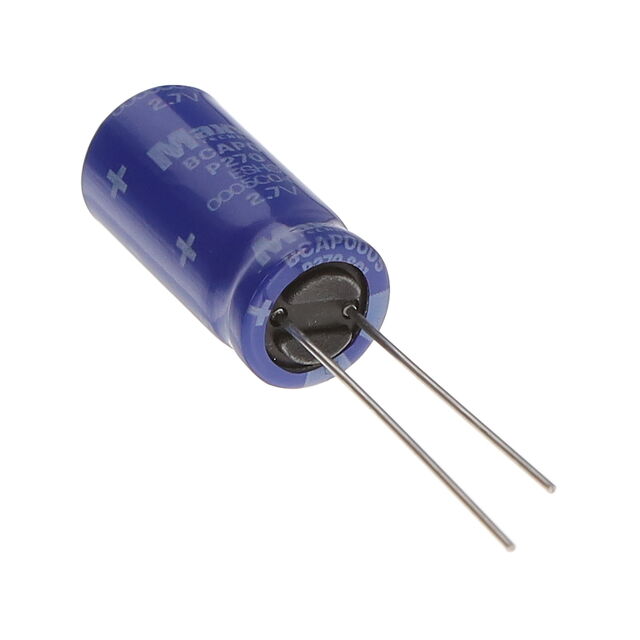

BCAP0005 P270 S01
ActiveMaxwell Technologies
CAP 5F -10% +20% 2.7V T/H
Deep-Dive with AI
Search across all available documentation for this part.
BCAP0005 P270 S01
ActiveMaxwell Technologies
CAP 5F -10% +20% 2.7V T/H
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BCAP0005 P270 S01 |
|---|---|
| Capacitance | 5 F |
| ESR (Equivalent Series Resistance) | 45 mOhm |
| Height - Seated (Max) [Max] | 21.5 mm |
| Height - Seated (Max) [Max] | 0.846 in |
| Lead Spacing | 5 mm |
| Lead Spacing | 0.197 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can |
| Size / Dimension [diameter] | 10 mm |
| Size / Dimension [diameter] | 0.394 in |
| Termination | PC Pins |
| Tolerance [Max] | 20 % |
| Tolerance [Min] | -10 % |
| Voltage - Rated | 2.7 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.97 | |
| 10 | $ 1.94 | |||
| 50 | $ 1.53 | |||
| 100 | $ 1.40 | |||
| 500 | $ 1.18 | |||
| 1000 | $ 1.11 | |||
| 2500 | $ 1.03 | |||
| 5000 | $ 0.99 | |||
Description
General part information
BCAP0005 P270 S01
5 F (EDLC) Supercapacitor 2.7 V Radial, Can 45mOhm
Documents
Technical documentation and resources
No documents available
