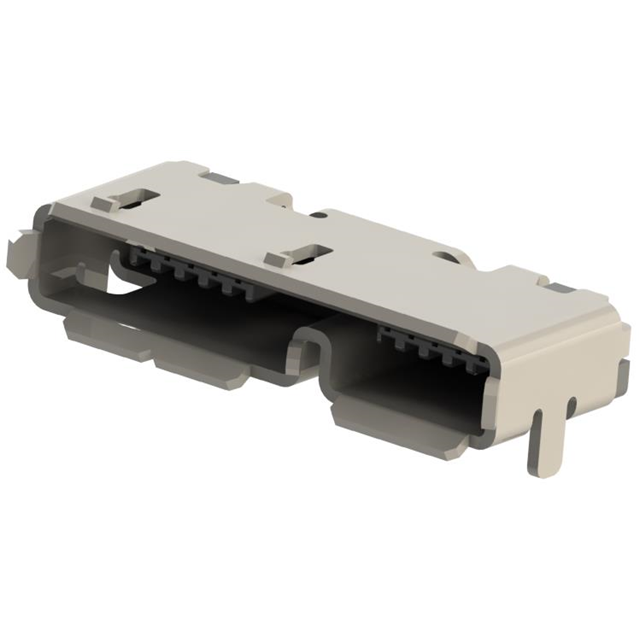

MUSB-310-OSS-H-AB-BM-TR-LF
ActiveMajor League Electronics
MICRO USB
Deep-Dive with AI
Search across all available documentation for this part.
MUSB-310-OSS-H-AB-BM-TR-LF
ActiveMajor League Electronics
MICRO USB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MUSB-310-OSS-H-AB-BM-TR-LF |
|---|---|
| Connector Type | Stacked, USB-AB (USB TYPE-AB) |
| Contact Finish | Gold |
| Current Rating (Amps) | 100 mA, 1 A, 1.8 A |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts | 10 |
| Number of Ports | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Shell/Shielding Material | Steel (SUS304) |
| Shielding | Shielded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1.27 | |
Description
General part information
MUSB-310-OSS-H-AB-BM-TR-LF
USB-AB (USB TYPE-AB), Stacked Receptacle Connector 10 Position Surface Mount, Right Angle; Through Hole
Documents
Technical documentation and resources
No documents available
