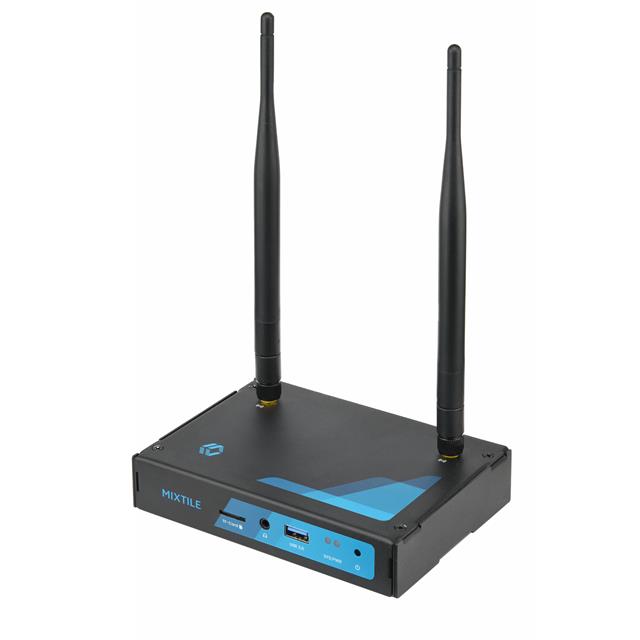

IEC-EDGE2-0432
ActiveMixtile Limited
SBC 2.0GHZ 4 CORE 4GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IEC-EDGE2-0432
ActiveMixtile Limited
SBC 2.0GHZ 4 CORE 4GB RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IEC-EDGE2-0432 |
|---|---|
| Analog Input:Output [custom] | 4 |
| Analog Input:Output [custom] | 4 |
| Cooling Type | Heat Sink |
| Core Processor | Rockchip RK3568, Quad-Core-A55 |
| Digital I/O Lines | 4 |
| Ethernet | GbE (1) |
| Expansion Site/Bus | ADC, I2C, UART, SPDIF, CAN, RS-485 |
| Form Factor | Desktop |
| Number of Cores | 4 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 10 W |
| RAM Capacity/Installed | 4 GB |
| Size / Dimension [x] | 148 mm |
| Size / Dimension [x] | 5.827 in |
| Size / Dimension [y] | 105 mm |
| Size / Dimension [y] | 4.134 " |
| Speed | 2 GHz |
| Storage Interface | eMMC 5.1 |
| USB | USB 3.0 (3) |
| Video Outputs | HDMI 2.0 |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 240.95 | |
| 10 | $ 230.76 | |||
| 25 | $ 225.67 | |||
Description
General part information
IEC-EDGE2-0432
Single Board Computer 2GHz 4 Core 4GB RAM Rockchip RK3568, Quad-Core-A55
