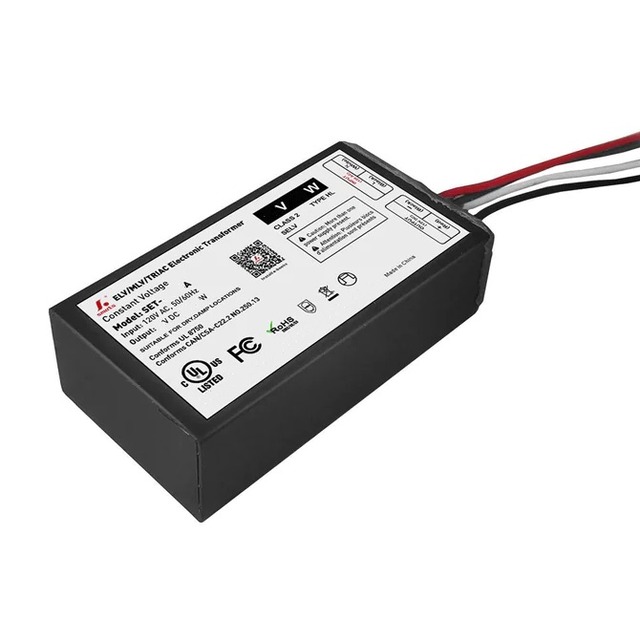

SET-24096A
ActiveSmarts Electronic & Technology
24VDC 96W UL LISTED PHASE DIM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SET-24096A
ActiveSmarts Electronic & Technology
24VDC 96W UL LISTED PHASE DIM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SET-24096A |
|---|---|
| Approval Agency | cULus, FCC |
| Current - Output (Max) [Max] | 4 A |
| Dimming | MLV, ELV, TRIAC |
| Efficiency | 88 % |
| Features | OCP, SCP |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 96 W |
| Ratings | IP67 |
| Size / Dimension [x] | 2.83 " |
| Size / Dimension [x] | 72 mm |
| Size / Dimension [y] | 1.53 in |
| Size / Dimension [y] | 39 mm |
| Size / Dimension [z] | 22.5 mm |
| Size / Dimension [z] | 0.89 in |
| Standard Number | 8750 |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Voltage |
| Voltage - Input (Max) [Max] | 130 VAC |
| Voltage - Input (Min) [Min] | 100 VAC |
| Voltage - Isolation | 1.88 kV |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 38.09 | |
| 10 | $ 35.09 | |||
| 25 | $ 33.08 | |||
| 50 | $ 32.08 | |||
| 100 | $ 30.07 | |||
| 250 | $ 27.57 | |||
Description
General part information
SET-24096A
4A 24V Constant Voltage LED Driver AC DC Converter Topology 1 Output
