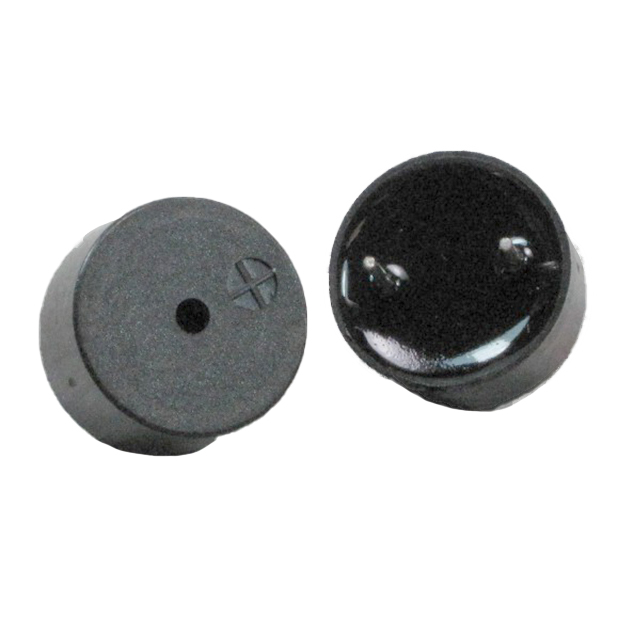

BRP1408P-12-CS
ActiveInternational Components Corp.
BUZZER PIEZO 12V 13.8MM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BRP1408P-12-CS |
|---|---|
| Current - Supply | 7 mA |
| Driver Circuitry | Internally Driven, Indicator |
| Frequency | 4 kHz |
| Height - Seated (Max) [Max] [z] | 0.299 in |
| Height - Seated (Max) [Max] [z] | 7.6 mm |
| Input Type | DC |
| Mounting Type | Through Hole |
| Operating Mode | Continuous |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Port Location | Top |
| Size / Dimension | 13.8 mm |
| Size / Dimension [diameter] | 0.543 " |
| Sound Pressure Level (SPL) | 80 dB |
| Technology | Piezo |
| Termination | PC Pins |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 16 V |
| Voltage Range [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BRP1408P-12-CS
Buzzers Indicator, Internally Driven Piezo 12 V 7mA 4kHz 80dB @ 10V, 10cm Through Hole PC Pins
