RFN-1021-5-03
ActiveRF Industries

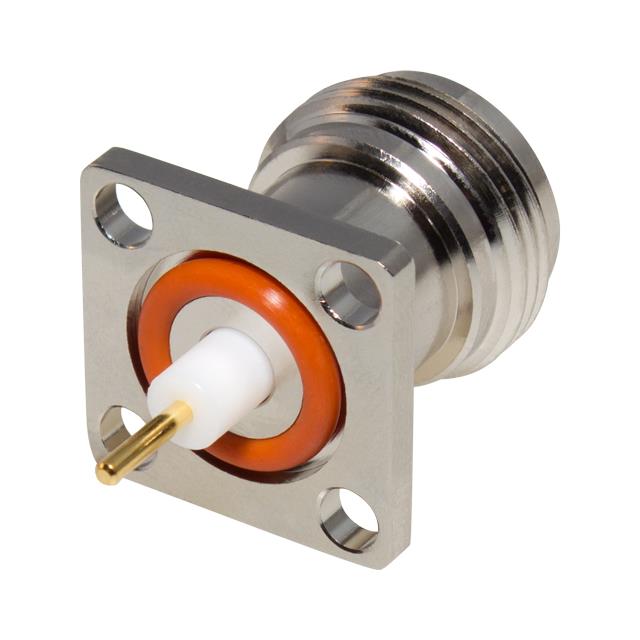

NF MINI 4HOLE POST .18" ORING
Deep-Dive with AI
Search across all available documentation for this part.
RFN-1021-5-03
ActiveRF Industries
NF MINI 4HOLE POST .18" ORING
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RFN-1021-5-03 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mounting Feature | Flange |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 1000 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 7.00 | |
Description
General part information
RFN-1021-5-03
N Type Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder
Documents
Technical documentation and resources
No documents available
