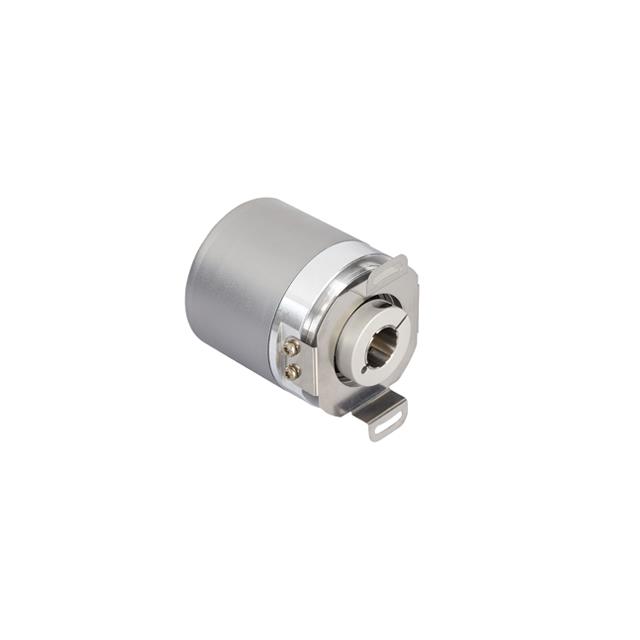

UTD-IPH00-01000-HSY0-PAQ
ActivePOSITAL
PROGRAM. INCREMENTAL PPR 1-16384
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UTD-IPH00-01000-HSY0-PAQ
ActivePOSITAL
PROGRAM. INCREMENTAL PPR 1-16384
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UTD-IPH00-01000-HSY0-PAQ |
|---|---|
| Built in Switch | False |
| Detent | False |
| Encoder Type | Incremental, Magnetic |
| Mounting Type | Flange Mount |
| Orientation | Vertical |
| Output Type | TTL, HTL, Push-Pull |
| Pulses per Revolution | Programmable |
| Termination Style | Connector |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 415.24 | |
| 10 | $ 394.48 | |||
Description
General part information
UTD-IPH00-01000-HSY0-PAQ
Rotary Encoder Incremental, Magnetic Programmable HTL, TTL, Push-Pull Vertical
