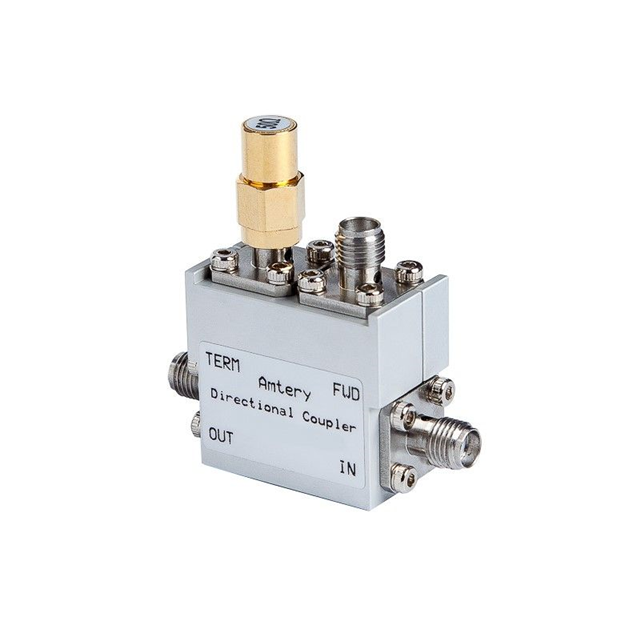

CP10710P150-20
ActiveAmtery Corporation
7 GHZ - 10 GHZ, 20 DB COUPLING
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CP10710P150-20
ActiveAmtery Corporation
7 GHZ - 10 GHZ, 20 DB COUPLING
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CP10710P150-20 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | 20 dB |
| Frequency [Max] | 10 GHz |
| Frequency [Min] | 7 GHz |
| Insertion Loss | 0.35 dB |
| Isolation | 40 dB |
| Package / Case | Module, SMA Connectors |
| Power - Max [Max] | 150 W |
| Return Loss | 23 dB |
| Supplier Device Package | Module |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 430.00 | |
| 4 | $ 420.00 | |||
| 10 | $ 414.00 | |||
Description
General part information
CP10710P150-20
RF Directional Coupler General Purpose 7GHz ~ 10GHz 20dB 150W Module, SMA Connectors
