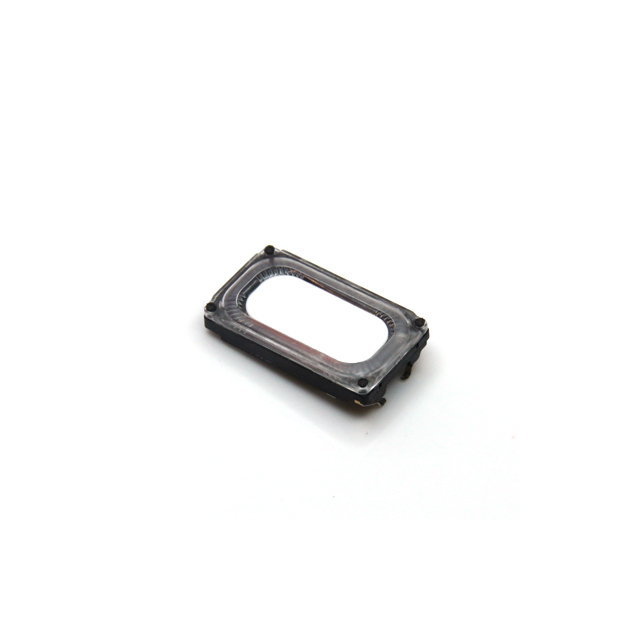

SM160508-1
ObsoleteDB Unlimited
SPEAKER 8OHM 500MW TOP PORT 87DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SM160508-1
ObsoleteDB Unlimited
SPEAKER 8OHM 500MW TOP PORT 87DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SM160508-1 |
|---|---|
| Efficiency - dBA | 87 dBA |
| Efficiency - Testing | 100 mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 550 Hz |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 550 Hz |
| Height - Seated (Max) | 3 mm |
| Height - Seated (Max) [Max] | 0.118 in |
| Impedance | 8 Ohms |
| Material - Cone | Polyester |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Power - Max [Max] | 1 W |
| Power - Rated | 500 mW |
| Shape | Rectangular |
| Size / Dimension [x] | 0.63 " |
| Size / Dimension [x] | 16 mm |
| Size / Dimension [y] | 9 mm |
| Size / Dimension [y] | 0.354 in |
| Technology | Magnetic |
| Termination | Spring Type |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SM160508-1
8 Ohms General Purpose Speaker 500 mW 550 Hz ~ 20 kHz Top Rectangular
