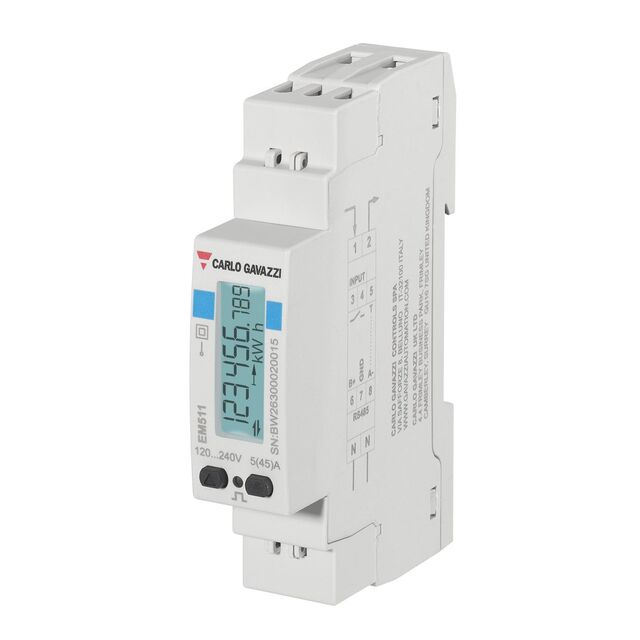

EM511DINAV81XM1PFA
ActiveCARLO GAVAZZI
1-PH ENERGY METER 45A M-BUS + DI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EM511DINAV81XM1PFA
ActiveCARLO GAVAZZI
1-PH ENERGY METER 45A M-BUS + DI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EM511DINAV81XM1PFA |
|---|---|
| Display Type | LCD - Black Characters, Backlight |
| Features | Hour Meter |
| Ingress Protection | IP40 |
| Measuring Range [Max] | 60 Hz, 45 A, 240 VAC |
| Measuring Range [Min] | 120 VAC, 5 A, 50 Hz |
| Measuring Type | Current, Frequency, Voltage |
| Mounting Type | DIN Rail |
| Number of Characters Per Row | 6 |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Termination Style | Screw Terminal |
| Type | Energy Monitor |
| Voltage - Supply | 230 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 274.00 | |
Description
General part information
EM511DINAV81XM1PFA
Energy Monitor LCD - Black Characters, Backlight Display DIN Rail
