HT 1/2 UR
ActiveMM Newman Corporation

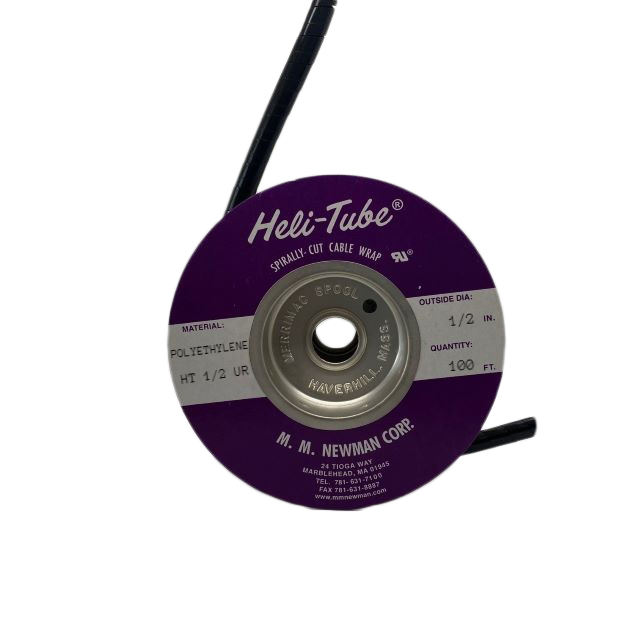

SPIRAL WRAP 0.376" X 100' BLACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HT 1/2 UR
ActiveMM Newman Corporation
SPIRAL WRAP 0.376" X 100' BLACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HT 1/2 UR |
|---|---|
| Abrasion Protection | Abrasion Resistant |
| Color | Black |
| Diameter - Inside, Expanded [diameter] | 4 in |
| Diameter - Inside, Expanded [diameter] | 101.6 mm |
| Diameter - Inside, Non-Expanded [diameter] | 0.376 in |
| Diameter - Inside, Non-Expanded [diameter] | 9.55 mm |
| Diameter - Outside, Non-Expanded [diameter] | 0.5 in |
| Diameter - Outside, Non-Expanded [diameter] | 12.7 mm |
| Features | Solvent Resistant, Chemical Resistant |
| Length | 100 ft |
| Length | 30.48 m |
| Material | Polyethylene (PE) |
| Operating Temperature [Max] | 88 °C |
| Operating Temperature [Min] | -60 °C |
| Type | Spiral Wrap |
| Type Attributes | Harness |
| Wall Thickness | 1.57 mm |
| Wall Thickness | 0.062 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 95.76 | |
| 10 | $ 76.58 | |||
Description
General part information
HT 1/2 UR
Spiral Wrap 0.500" (12.70mm) X 100' (30.48m) Black
Documents
Technical documentation and resources
