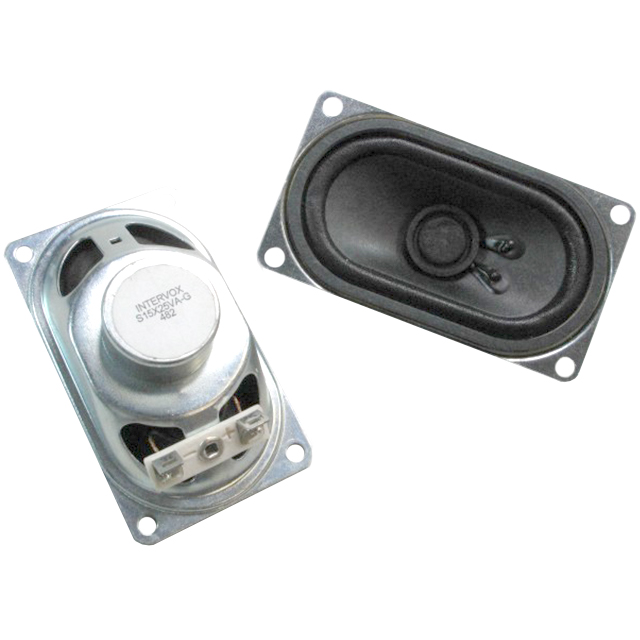

S15X25VA
ActiveInternational Components Corp.
SPEAKER 8OHM 3W TOP PORT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S15X25VA
ActiveInternational Components Corp.
SPEAKER 8OHM 3W TOP PORT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S15X25VA |
|---|---|
| Frequency - Self Resonant | 250 Hz |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 250 Hz |
| Height - Seated (Max) [Max] | 25.5 mm |
| Height - Seated (Max) [Max] | 1.004 in |
| Impedance | 8 Ohms |
| Material - Cone | Paper |
| Material - Magnet | Rare Earth |
| Port Location | Top |
| Power - Max [Max] | 5 W |
| Power - Rated | 3 W |
| Shape | Oval, Rectangular Frame |
| Size / Dimension [x] | 2.795 in |
| Size / Dimension [x] | 71 mm |
| Size / Dimension [y] | 40 mm |
| Size / Dimension [y] | 1.575 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
S15X25VA
8 Ohms General Purpose Speaker 3 W 250 Hz ~ 20 kHz Top Oval, Rectangular Frame
