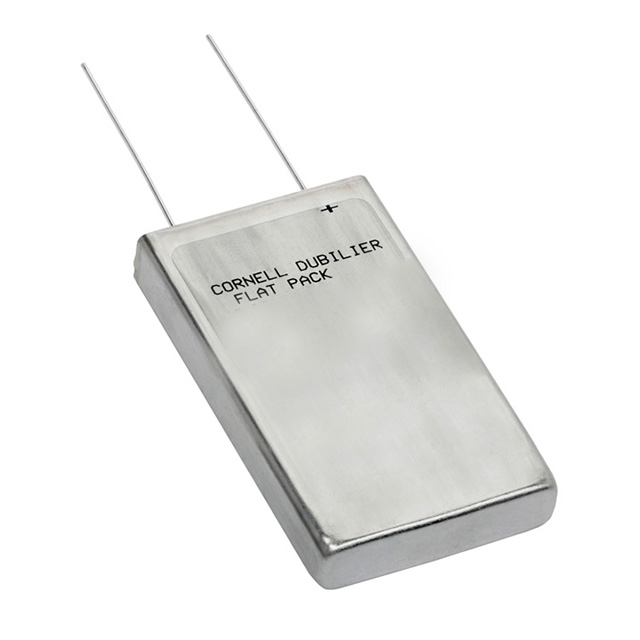

MLSG901M150EB0C
ActiveCornell Dubilier Knowles
CAP ALUM 900UF 20% 150V FLTPCK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MLSG901M150EB0C
ActiveCornell Dubilier Knowles
CAP ALUM 900UF 20% 150V FLTPCK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MLSG901M150EB0C |
|---|---|
| Applications | General Purpose |
| Capacitance | 900 µF |
| ESR (Equivalent Series Resistance) | 158 mOhm |
| Height - Seated (Max) [Max] [z] | 12.7 mm |
| Height - Seated (Max) [Max] [z] | 0.5 in |
| Lead Spacing | 25.4 mm |
| Lead Spacing | 1 in |
| Lifetime @ Temp. | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | FlatPack |
| Polarization | Polar |
| Ripple Current @ High Frequency | 10.1 A |
| Ripple Current @ Low Frequency | 8.1 A |
| Size / Dimension [x] | 3 in, 76.2 mm |
| Size / Dimension [y] | 1.75 in, 44.45 mm |
| Tolerance | 20 % |
| Voltage - Rated | 150 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 245.51 | |
Description
General part information
MLSG901M150EB0C
900 µF 150 V Aluminum Electrolytic Capacitors FlatPack 158mOhm @ 120Hz 5000 Hrs @ 125°C
