39680FEX042A24
ActiveElettrotek Kabel North America

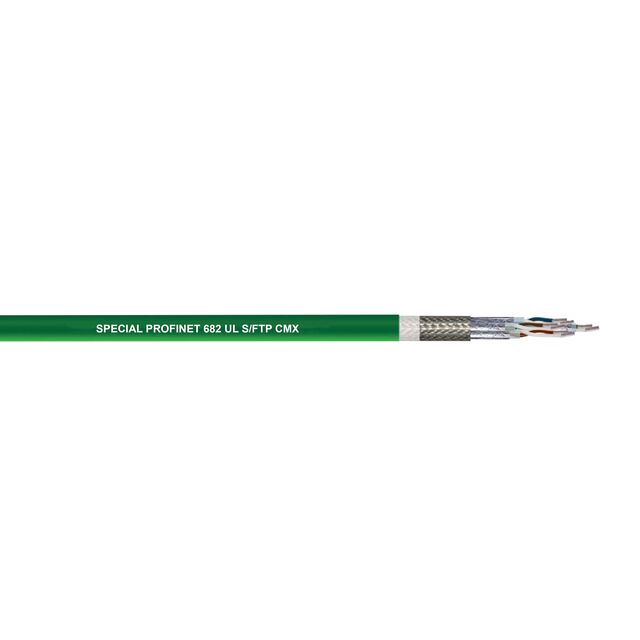

SPECIAL CABLE PROFINET 682 UL-CM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
39680FEX042A24
ActiveElettrotek Kabel North America
SPECIAL CABLE PROFINET 682 UL-CM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 39680FEX042A24 |
|---|---|
| Cable Type | Multi-Pair, Cat6a |
| Conductor Insulation | Polypropylene (PP) |
| Conductor Material | Copper, Tinned |
| Features | Flame Retardant, Oil Resistant, Halogen-Free |
| Jacket (Insulation) Diameter | 0.343 in |
| Jacket (Insulation) Diameter | 8.71 mm |
| Jacket (Insulation) Material | Polyurethane (PU) |
| Jacket Color | Green |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 8 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Ratings | AWM Styles 10675/21238 |
| Shield Coverage | 85 % |
| Shield Material | Copper, Tinned |
| Shield Type | Foil, Braid |
| Usage | Industrial, Data |
| Voltage | 600 V |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 3.77 | |
Description
General part information
39680FEX042A24
8 (4 Pair) Conductor Multi-Pair, Cat6a Cable Green 24 AWG Foil, Braid Enter Number of Feet in Order Quantity
