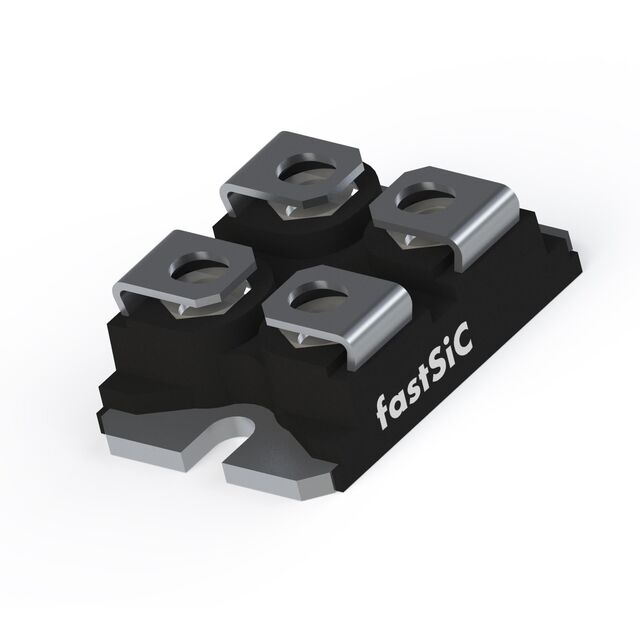

FP12100S27DC2X
ActivefastSiC
DIODE MOD SIC 1200V 100A SOT227
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FP12100S27DC2X |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 100 A |
| Current - Reverse Leakage @ Vr | 0.1 mA |
| Diode Configuration | 2 Independent |
| Mounting Type | Chassis Mount |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -55 C |
| Package / Case | SOT-227-4, miniBLOC |
| Speed | No Recovery Time |
| Supplier Device Package | SOT-227 |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 1.2 kV |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 88.52 | |
| 10 | $ 32.46 | |||
| 100 | $ 30.25 | |||
| 500 | $ 29.51 | |||
Description
General part information
FP12100S27DC2X
Diode Array 2 Independent 1.2 kV 100A (DC) Chassis Mount SOT-227-4, miniBLOC
