MMF404728
ActiveMicro-Measurements (Division of Vishay Precision Group)

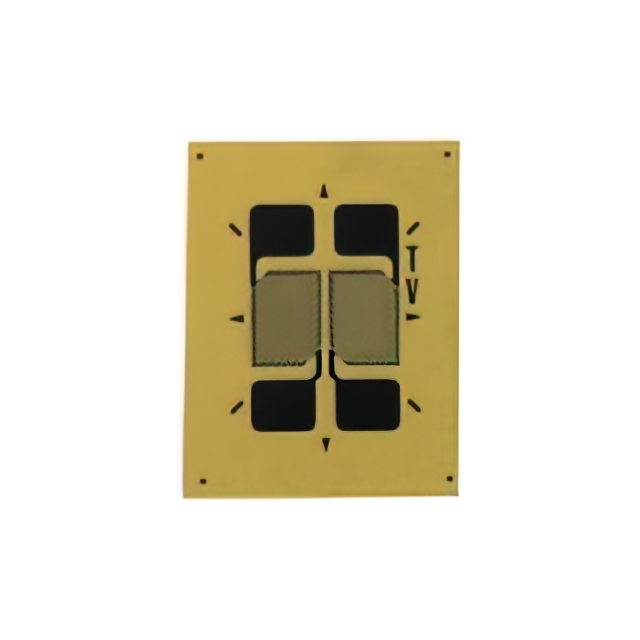

EA-06-062TZA-350/W - STRAIN GAGE
Deep-Dive with AI
Search across all available documentation for this part.
MMF404728
ActiveMicro-Measurements (Division of Vishay Precision Group)
EA-06-062TZA-350/W - STRAIN GAGE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MMF404728 |
|---|---|
| Length - Active [x] | 1.57 mm |
| Length - Active [x] | 0.062 in |
| Length - Overall [x] | 7.1 mm |
| Length - Overall [x] | 0.28 in |
| Length - Overall Pattern [x] | 0.133 in |
| Length - Overall Pattern [x] | 3.38 mm |
| Operating Temperature [Max] | 175 °C |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -103 °F |
| Operating Temperature [Min] | -75 °C |
| Pattern Type | Tee Rosette |
| Resistance | 350 Ohms |
| Resistance Tolerance | ±0.2% |
| Strain Range [Max] | 3 % |
| Strain Range [Min] | -3 % |
| Width - Active | 1.91 mm |
| Width - Active | 0.075 in |
| Width - Overall [x] | 0.26 " |
| Width - Overall [x] | 6.6 mm |
| Width - Overall Pattern [y] | 0.168 " |
| Width - Overall Pattern [y] | 4.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 208.34 | |
Description
General part information
MMF404728
Tee Rosette Strain Gauge ±3% 0.062" (1.57mm) 0.075" (1.91mm)
Documents
Technical documentation and resources
No documents available
