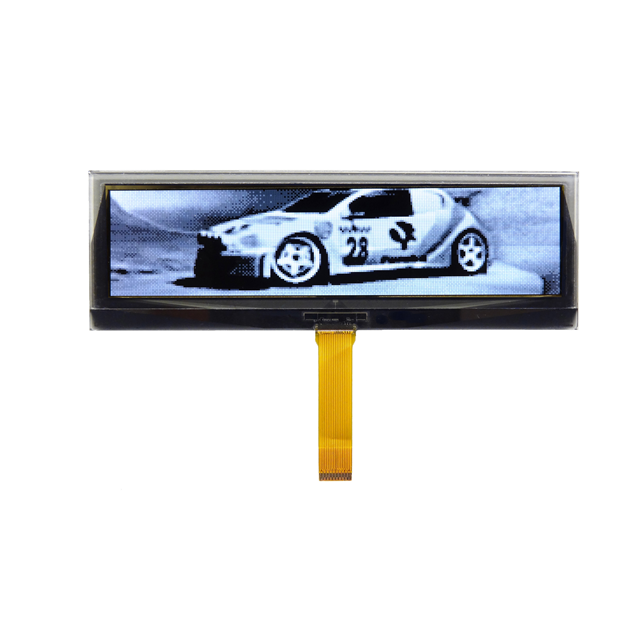

ELW3601AAR
ActiveFutaba Corporation
256X64 GRAYSCALE, 3.6" OLED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ELW3601AAR
ActiveFutaba Corporation
256X64 GRAYSCALE, 3.6" OLED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ELW3601AAR |
|---|---|
| Diagonal Screen Size [x] | 91.44 mm |
| Diagonal Screen Size [x] | 3.6 in |
| Display Type | OLED - Passive Matrix |
| Dot Pitch [x] | 0.34 mm |
| Dot Pitch [y] | 0.33 mm |
| Dot Pixels [x] | 256 |
| Dot Pixels [y] | 64 |
| Graphics Color | White |
| Interface | Serial |
| Viewing Area [x] | 87.53 mm |
| Viewing Area [y] | 21.29 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 40.93 | |
| 5 | $ 38.46 | |||
| 10 | $ 38.30 | |||
Description
General part information
ELW3601AAR
Graphic LCD Display Module White OLED - Passive Matrix Serial 3.6" (91.44mm) 256 x 64
