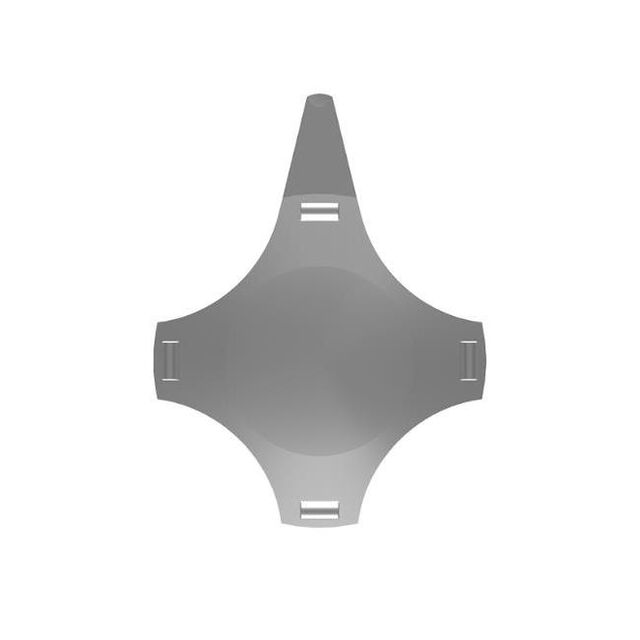

NCF12400N
ActiveSnaptron
SWITCH TACT SPDT-NC/NO 0.1A 50V
Deep-Dive with AI
Search across all available documentation for this part.
NCF12400N
ActiveSnaptron
SWITCH TACT SPDT-NC/NO 0.1A 50V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NCF12400N |
|---|---|
| Actuator Height off PCB, Vertical | 0.73 mm |
| Actuator Material | Stainless Steel |
| Actuator Orientation | Top Actuated |
| Actuator Type | Snap Dome |
| Circuit | SPDT-NC/NO |
| Contact Rating @ Voltage | 0.1 A, 50 VDC |
| Illumination | Non-Illuminated |
| Mechanical Life | 5000000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 400 gf |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -45 °C |
| Outline [x] | 12 mm |
| Outline [y] | 12 mm |
| Switch Function | Off-Mom |
| Switch Travel [custom] | 0.61 mm |
| Termination Style | SMD (SMT) Tab |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 0.43 | |
| 300 | $ 0.40 | |||
| 500 | $ 0.37 | |||
| 1000 | $ 0.33 | |||
| 2500 | $ 0.30 | |||
| 5000 | $ 0.29 | |||
| 10000 | $ 0.24 | |||
Description
General part information
NCF12400N
Tactile Switch SPDT-NC/NO Top Actuated Surface Mount
Documents
Technical documentation and resources
No documents available
