4727
ActiveAdafruit Industries LLC

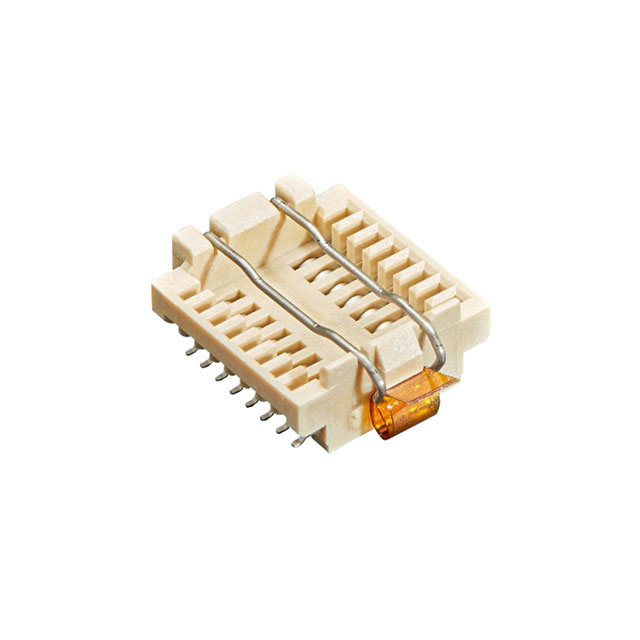

SMT SOCKET - WIDE SOIC-16
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4727
ActiveAdafruit Industries LLC
SMT SOCKET - WIDE SOIC-16
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4727 |
|---|---|
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Material - Mating | Copper Alloy |
| Contact Material - Post [custom] | Copper Alloy |
| Features | Closed Frame |
| Housing Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions or Pins (Grid) | 16 |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Pitch - Post | 1.27 mm |
| Pitch - Post | 0.05 in |
| Termination | Solder |
| Type | SOIC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.95 | |
Description
General part information
4727
16 (2 x 8) Pos SOIC Socket Tin Surface Mount
Documents
Technical documentation and resources
