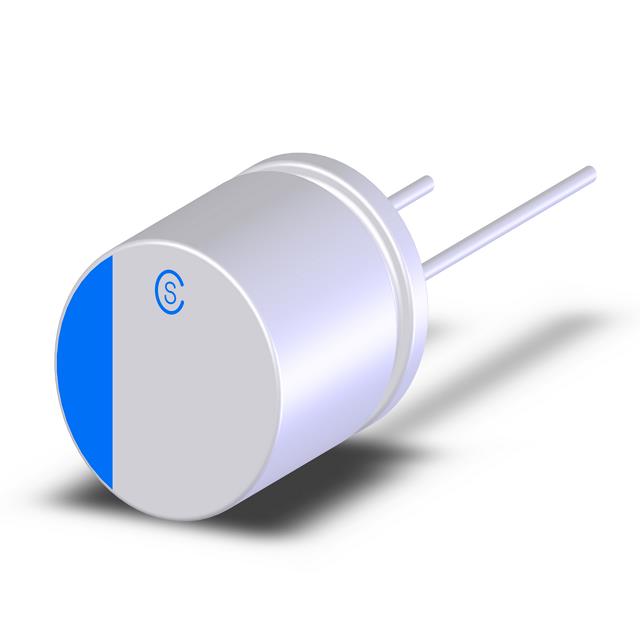

UPR0J821MNN6308
ActiveChinsan (Elite)
CAP ALUM POLY 820UF 20% 6.3V TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UPR0J821MNN6308
ActiveChinsan (Elite)
CAP ALUM POLY 820UF 20% 6.3V TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UPR0J821MNN6308 |
|---|---|
| Applications | General Purpose |
| Capacitance | 820 µF |
| ESR (Equivalent Series Resistance) | 8 mOhms |
| Height - Seated (Max) [Max] | 0.354 in |
| Height - Seated (Max) [Max] | 9 mm |
| Lead Spacing | 0.098 in |
| Lead Spacing | 2.5 mm |
| Lifetime @ Temp. | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Can |
| Ripple Current @ High Frequency | 4.7 A |
| Size / Dimension [diameter] | 0.248 in |
| Size / Dimension [diameter] | 6.3 mm |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 6.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.17 | |
| 10 | $ 0.75 | |||
| 50 | $ 0.57 | |||
| 100 | $ 0.52 | |||
| 500 | $ 0.42 | |||
| 1000 | $ 0.39 | |||
| 3000 | $ 0.35 | |||
| 5000 | $ 0.34 | |||
Description
General part information
UPR0J821MNN6308
820 µF 6.3 V Aluminum - Polymer Capacitors Radial, Can 8mOhm 2000 Hrs @ 105°C
