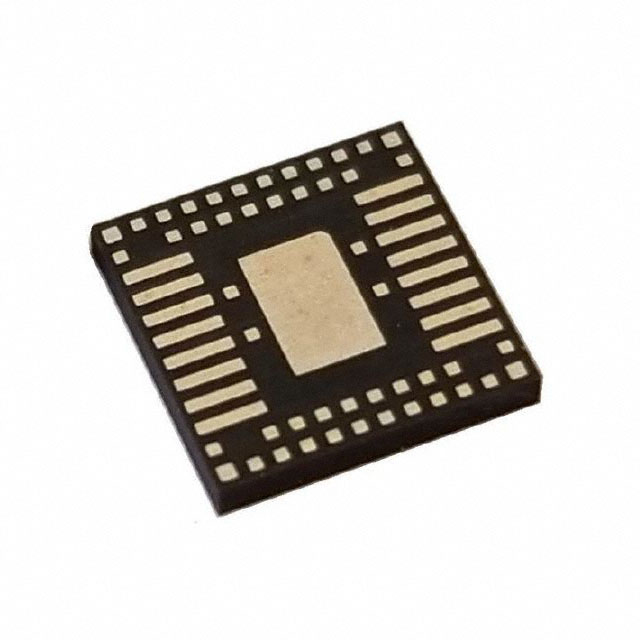

AND8240QF65
ActiveAnDAPT, Inc.
IC REG 6OUT BUCK/LNR SYNC 65QF
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AND8240QF65
ActiveAnDAPT, Inc.
IC REG 6OUT BUCK/LNR SYNC 65QF
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AND8240QF65 |
|---|---|
| Frequency - Switching | 571 kHz |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 65-PowerWFQFN |
| Supplier Device Package | 65-QF (5x5) |
| Topology | Linear (LDO) (4), Step-Down (Buck) Synchronous (2) |
| Voltage/Current - Output 1 [custom] | 6 A |
| Voltage/Current - Output 1 [custom] | Adj |
| Voltage/Current - Output 2 | 6 A |
| Voltage/Current - Output 2 | Adjustable |
| Voltage/Current - Output 3 | 1 A |
| w/LED Driver | False |
| w/Sequencer | True |
| w/Supervisor | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.15 | |
Description
General part information
AND8240QF65
PMIC - Voltage Regulators - Linear Switching 6 Output Step-Down (Buck) Synchronous (2), Linear (LDO) (4) 571kHz 65-QF (5x5)
Documents
Technical documentation and resources
