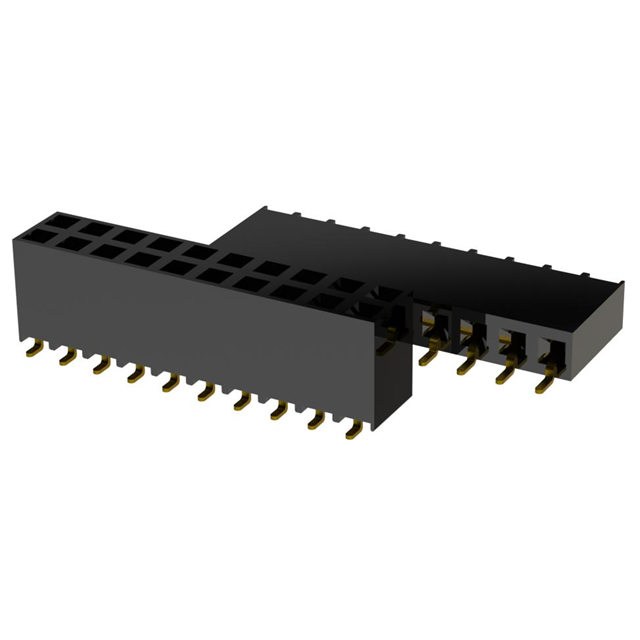

SMBC-212-D-02-GT-V-P-LF - SMBC-212-D-02-GT-V-P-LF

SMBC-212-D-02-GT-V-P-LF

Active
Major League Electronics

.079 SOCKET

Deep-Dive with AI

Search across all available documentation for this part.

SMBC-212-D-02-GT-V-P-LF - SMBC-212-D-02-GT-V-P-LF

SMBC-212-D-02-GT-V-P-LF

Active
Major League Electronics

.079 SOCKET

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

SpecificationSMBC-212-D-02-GT-V-P-LF
Connector TypeReceptacle
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating10 çin
Contact Finish Thickness - Mating0.25 çm
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeFemale Socket
Current Rating (Amps)2 A
Fastening TypePush-Pull
FeaturesBoard Guide
Insulation ColorBlack
Insulation Height0.177 in
Insulation Height4.5 mm
Insulation MaterialNylon 6T, Polyamide (PA6T)
Mounting TypeSurface Mount
Number of Positions24
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Pitch - Mating [x]0.079 in
Pitch - Mating [x]2 mm
Row Spacing - Mating0.079 in
Row Spacing - Mating2 mm
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 1.16

Description

General part information

SMBC-212-D-02-GT-V-P-LF

24 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold

Documents

Technical documentation and resources

No documents available
