BN-45I
ActiveTexmate
9-36VDC POWER 2V/20V/200V 4.5 VO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BN-45I |
|---|---|
| Display Characters - Height [z] | 14.2 mm |
| Display Characters - Height [z] | 0.56 in |
| Display Type | LED - Red Characters |
| Measuring Range [Max] | 200 V |
| Measuring Range [Min] | -200 V |
| Measuring Type | Voltage |
| Number of Characters Per Row | 4.5 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Panel Cutout Dimensions [x] | 92 mm |
| Panel Cutout Dimensions [y] | 22.2 mm |
| Termination Style | Screw Terminal |
| Type | Voltmeter |
| Voltage - Supply [Max] | 36 V |
| Voltage - Supply [Min] | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 445.00 | |
Description
General part information

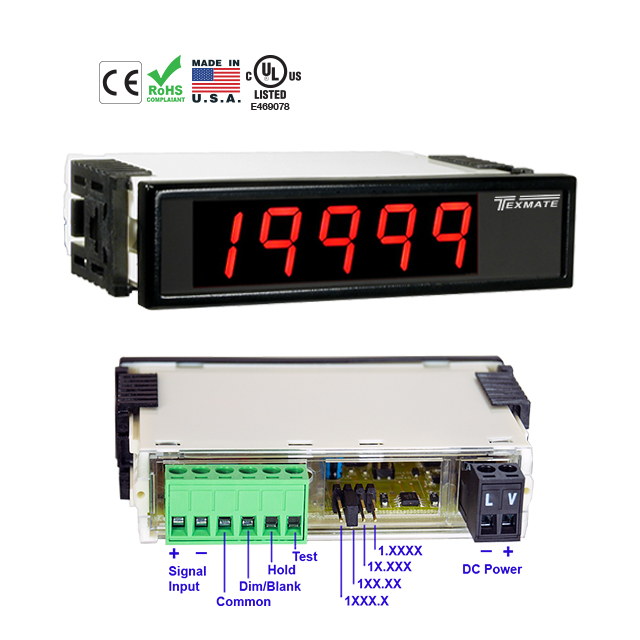

BN-45I
Voltmeter LED - Red Characters Display Panel Mount
