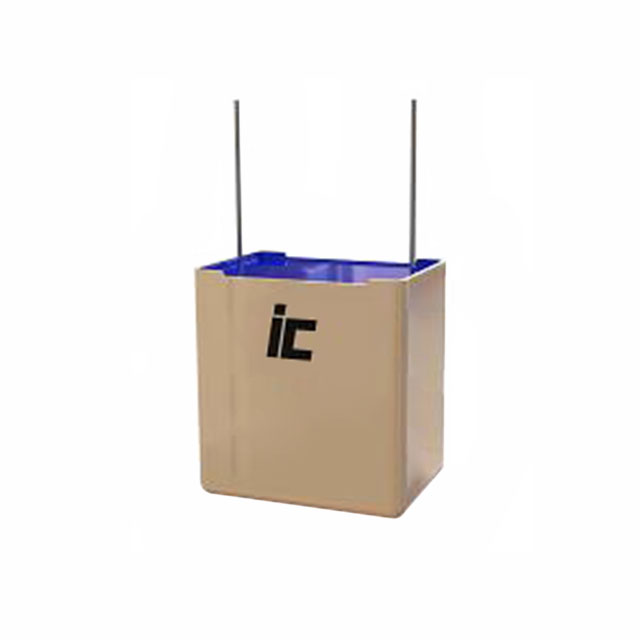

106MABA03KJS
ObsoleteCornell Dubilier Knowles
CAP FILM 10UF 10% 500VDC RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
106MABA03KJS
ObsoleteCornell Dubilier Knowles
CAP FILM 10UF 10% 500VDC RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 106MABA03KJS |
|---|---|
| Applications | Motor Run |
| Capacitance | 10 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) [Max] [z] | 1.181 " |
| Height - Seated (Max) [Max] [z] | 30 mm |
| Lead Spacing | 37.5 mm |
| Lead Spacing | 1.476 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial |
| Size / Dimension [x] | 1.673 in, 42.5 mm |
| Size / Dimension [y] | 0.866 in, 22 mm |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
106MABA03KJS
10 µF Film Capacitor 250V 500V Polypropylene (PP), Metallized Radial
