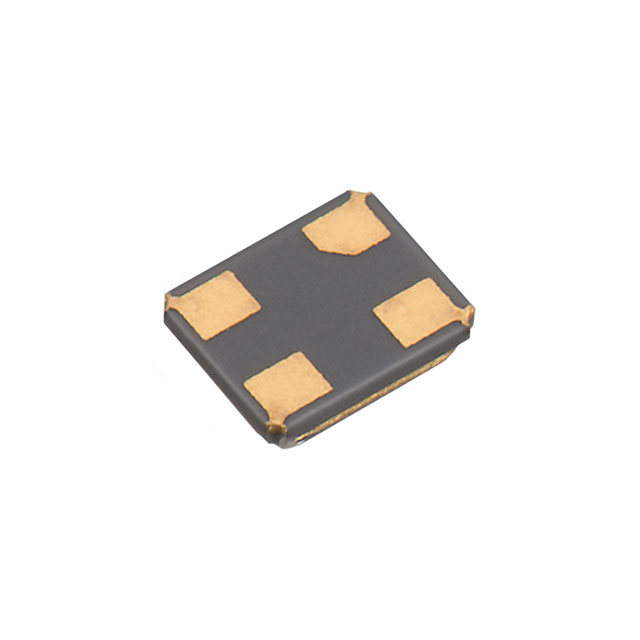

LFXTAL082135REEL
ActiveIQD FREQUENCY PRODUCTS
CRYSTAL 48.0000MHZ 8PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LFXTAL082135REEL
ActiveIQD FREQUENCY PRODUCTS
CRYSTAL 48.0000MHZ 8PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LFXTAL082135REEL |
|---|---|
| ESR (Equivalent Series Resistance) | 60 Ohms |
| Frequency | 48 MHz |
| Frequency Stability | 15 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) [Max] [z] | 0.5 mm |
| Height - Seated (Max) [Max] [z] | 0.02 " |
| Load Capacitance | 8 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.48 | |
| 10 | $ 0.43 | |||
| 50 | $ 0.40 | |||
| 100 | $ 0.35 | |||
| 500 | $ 0.33 | |||
| Digi-Reel® | 1 | $ 0.48 | ||
| 10 | $ 0.43 | |||
| 50 | $ 0.40 | |||
| 100 | $ 0.35 | |||
| 500 | $ 0.33 | |||
| Tape & Reel (TR) | 1000 | $ 0.33 | ||
Description
General part information
LFXTAL082135REEL
48 MHz ±10ppm Crystal 8pF 60 Ohms 4-SMD, No Lead
