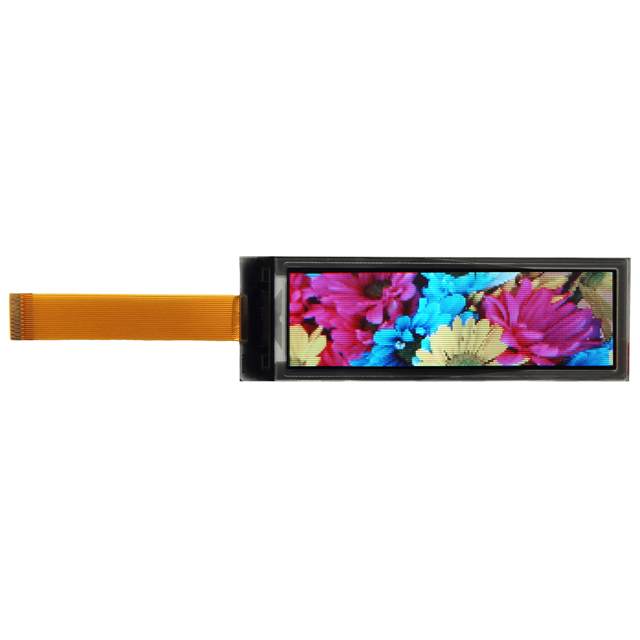

ELF2101AA
ObsoleteFutaba Corporation
176X48 FULL COLOR, 2.1" OLED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ELF2101AA
ObsoleteFutaba Corporation
176X48 FULL COLOR, 2.1" OLED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ELF2101AA |
|---|---|
| Diagonal Screen Size | 53.74 mm |
| Diagonal Screen Size | 2.1 in |
| Display Type | OLED - Passive Matrix |
| Dot Pitch [x] | 0.29 mm |
| Dot Pitch [y] | 0.26 mm |
| Dot Pixels [x] | 176 |
| Dot Pixels [y] | 48 |
| Dot Size [x] | 0.26 mm |
| Dot Size [y] | 0.24 mm |
| Graphics Color | Green, Red, Blue |
| Interface | Serial, I2C, SPI |
| Viewing Area [x] | 50.66 mm |
| Viewing Area [y] | 12.36 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ELF2101AA
Graphic LCD Display Module Red, Green, Blue (RGB) OLED - Passive Matrix I2C, Serial, SPI 2.1" (53.74mm) 176 x 48
