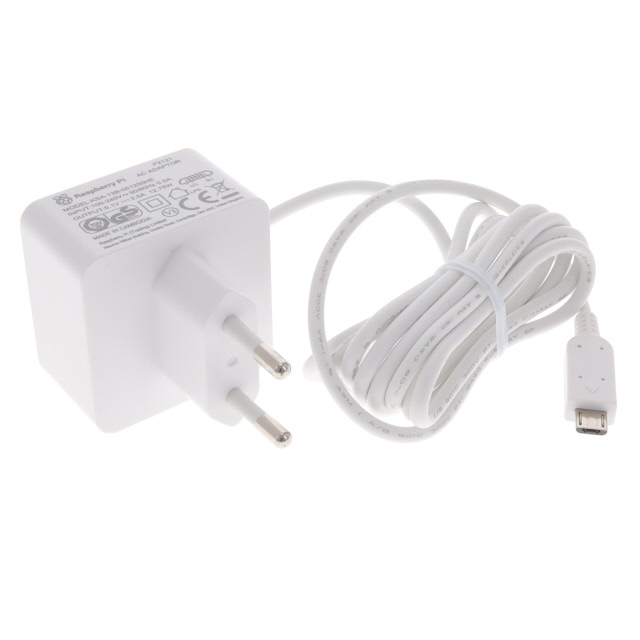

SC0624
ActiveRaspberry Pi
AC/DC WALL MNT ADAPTER 5.1V 13W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SC0624
ActiveRaspberry Pi
AC/DC WALL MNT ADAPTER 5.1V 13W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SC0624 |
|---|---|
| Applications | ITE (Commercial) |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 2.5 A |
| Efficiency | 80.73 % |
| Form | Wall Mount (Class II) |
| Input Connector | KSC 8305 |
| Input Type | Fixed Blade |
| No Load Power Consumption | 75 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | USB Micro |
| Power (Watts) | 13 W |
| Region Utilized | Europe |
| Size / Dimension [x] | 1.89 in |
| Size / Dimension [x] | 48 mm |
| Size / Dimension [y] | 1.77 " |
| Size / Dimension [y] | 45 mm |
| Size / Dimension [z] | 1.06 in |
| Size / Dimension [z] | 27 mm |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 96 VAC |
| Voltage - Output | 5.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.00 | |
Description
General part information
SC0624
5.1V 13 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
