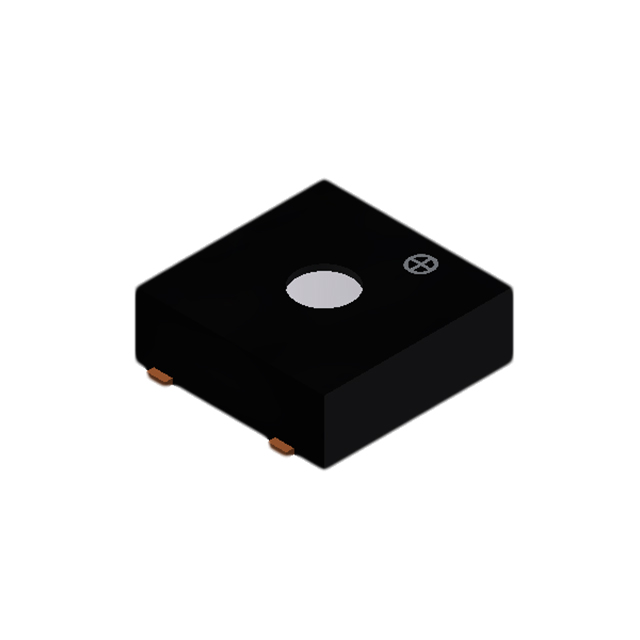

SMT-1028-T-R
ObsoletePUI AUDIO
BUZZER MAGN 3.6V 10X10MMSMD
Deep-Dive with AI
Search across all available documentation for this part.
SMT-1028-T-R
ObsoletePUI AUDIO
BUZZER MAGN 3.6V 10X10MMSMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMT-1028-T-R |
|---|---|
| Current - Supply | 100 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 2.83 kHz |
| Height - Seated (Max) [Max] | 0.157 in |
| Height - Seated (Max) [Max] | 4 mm |
| Input Type | Zero-Peak Signal |
| Mounting Type | Surface Mount |
| Operating Mode | Single Tone |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Size / Dimension [x] | 10 mm |
| Size / Dimension [x] | 0.394 " |
| Size / Dimension [y] | 10 mm |
| Size / Dimension [y] | 0.394 in |
| Sound Pressure Level (SPL) | 90 dB |
| Technology | Electromechanical/Magnetic |
| Termination | Solder Pads |
| Voltage - Rated | 3.6 VDC |
| Voltage Range [Max] | 4.6 V |
| Voltage Range [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SMT-1028-T-R
Buzzers Transducer, Externally Driven Electromechanical/Magnetic 3.6 V 100mA 2.83kHz 90dB @ 3.6V, 10cm Surface Mount Solder Pads
Documents
Technical documentation and resources
No documents available
