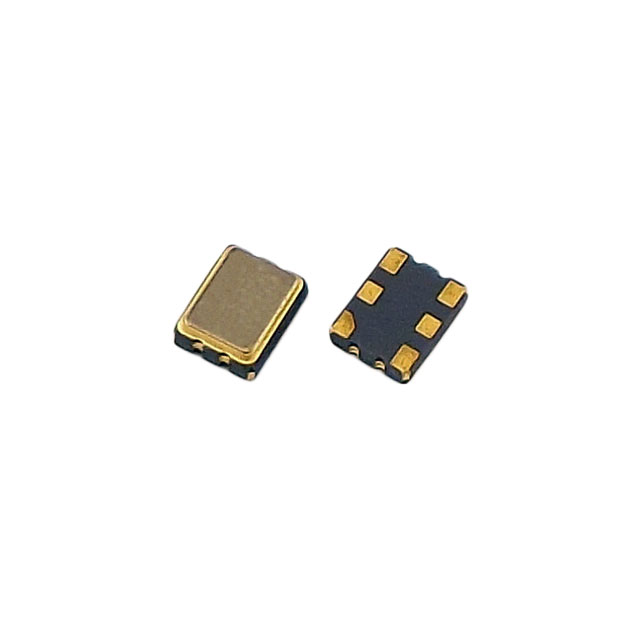

THS32-H10CQ33ST-26.000M-TR
ActiveTransko Electronics, Inc.
XTAL OSC XO 26.0000MHZ HCMOS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
THS32-H10CQ33ST-26.000M-TR
ActiveTransko Electronics, Inc.
XTAL OSC XO 26.0000MHZ HCMOS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | THS32-H10CQ33ST-26.000M-TR |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 7 mA |
| Frequency | 26 MHz |
| Frequency Stability | 10 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | HCMOS |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 5.50 | |
Description
General part information
THS32-H10CQ33ST-26.000M-TR
26 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
