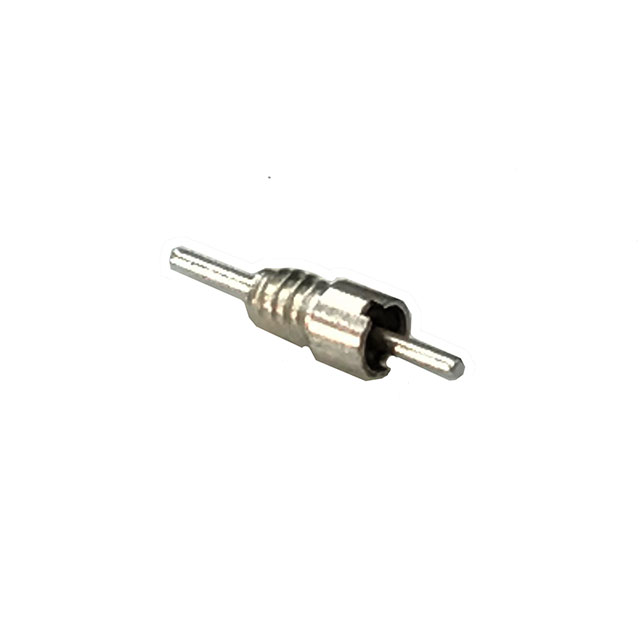

R3C100D
ActiveEMI FILTER COMPANY
FILTER, ROUND HEAD 4-40 MINI
Deep-Dive with AI
Search across all available documentation for this part.
R3C100D
ActiveEMI FILTER COMPANY
FILTER, ROUND HEAD 4-40 MINI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R3C100D |
|---|---|
| Capacitance | 10 pF |
| Current | 10 A |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Bushing, Axial |
| Size / Dimension [diameter] | 0.125 in |
| Size / Dimension [diameter] | 3.17 mm |
| Size / Dimension [x] | 0.24 in |
| Size / Dimension [x] | 6.09 mm |
| Temperature Coefficient | X7R |
| Tolerance [Max] | 100 % |
| Tolerance [Min] | 0 % |
| Voltage - Rated | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 11.61 | |
| 25 | $ 9.68 | |||
| 50 | $ 7.74 | |||
| 100 | $ 5.80 | |||
| 250 | $ 4.84 | |||
| 500 | $ 4.25 | |||
| 1000 | $ 3.88 | |||
| 2500 | $ 3.68 | |||
| 5000 | $ 3.49 | |||
Description
General part information
R3C100D
10 pF Feed Through Capacitor 200V 10 A Axial, Bushing
Documents
Technical documentation and resources
No documents available
