LCD 1602 2x16 Blue-White
ActiveUNIVERSAL-SOLDER Electronics Ltd
BLUE LCD 1602 2X16 CHARACTER MAT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LCD 1602 2x16 Blue-White |
|---|---|
| Background Color | Blue |
| Backlight | LED - White |
| Character Format [x] | 5 Dots |
| Character Format [y] | 7 Dots |
| Character Size [y] | 4.75 mm |
| Character Size [z] | 2.95 mm |
| Controller Type | HD44780, ST7066 |
| Display Format [x] | 16 |
| Display Format [y] | 2 |
| Display Mode | Transmissive |
| Display Type | STN - Super-Twisted Nematic, TN - Twisted Nematic |
| Dot Size [x] | 0.5 mm |
| Dot Size [y] | 0.55 mm |
| Interface | 4-Bit, 8-Bit |
| Number of Characters | 32 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline L x W x H [x] | 80 mm |
| Outline L x W x H [y] | 36 mm |
| Outline L x W x H [z] | 14 mm |
| Text Color | White |
| Viewing Area [x] | 64 mm |
| Viewing Area [y] | 14 mm |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.03 | |
| 3 | $ 2.82 | |||
| 10 | $ 2.65 | |||
| 25 | $ 2.51 | |||
Description
General part information

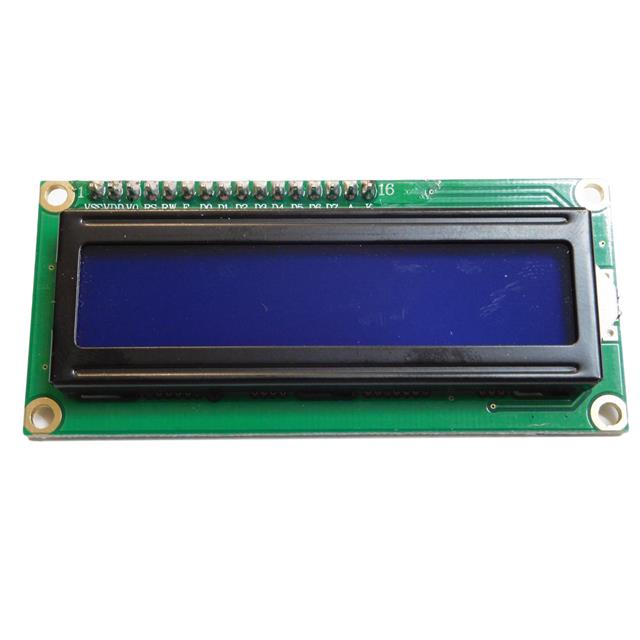

LCD 1602 2x16 Blue-White
Character Display Module Transmissive 5 x 7 Dots STN - Super-Twisted Nematic, TN - Twisted Nematic LED - White 4/8-Bit 80.00mm x 36.00mm x 14.00mm
