3242618
ActiveSAB North America

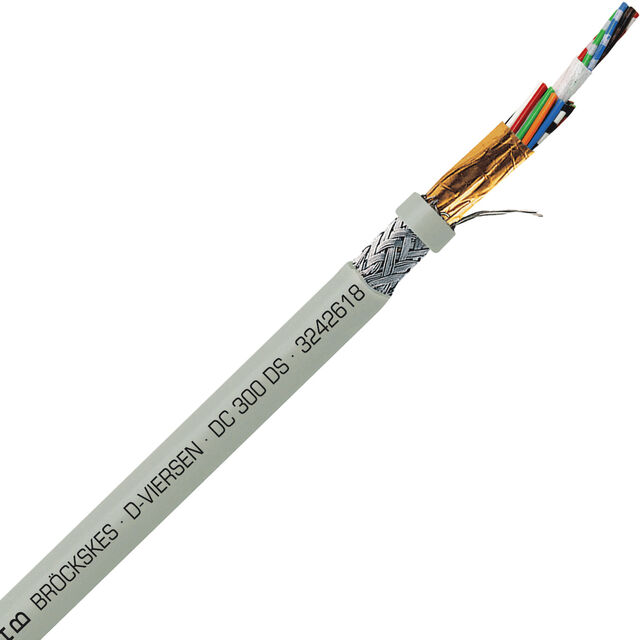

CABLE 18COND 26AWG GRAY SHLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3242618 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Jacket (Insulation) Diameter [diameter] | 0.291 " |
| Jacket (Insulation) Diameter [diameter] | 7.39 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 18 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -5 °C |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| Voltage | 300 V |
| Wire Gauge | 26 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 14.04 | |
| 50 | $ 10.70 | |||
| 100 | $ 10.24 | |||
| 250 | $ 9.76 | |||
| 500 | $ 9.39 | |||
| 1500 | $ 8.66 | |||
Description
General part information
3242618
18 Conductor Multi-Conductor Cable Gray 26 AWG Foil, Braid Enter Number of Feet in Order Quantity
