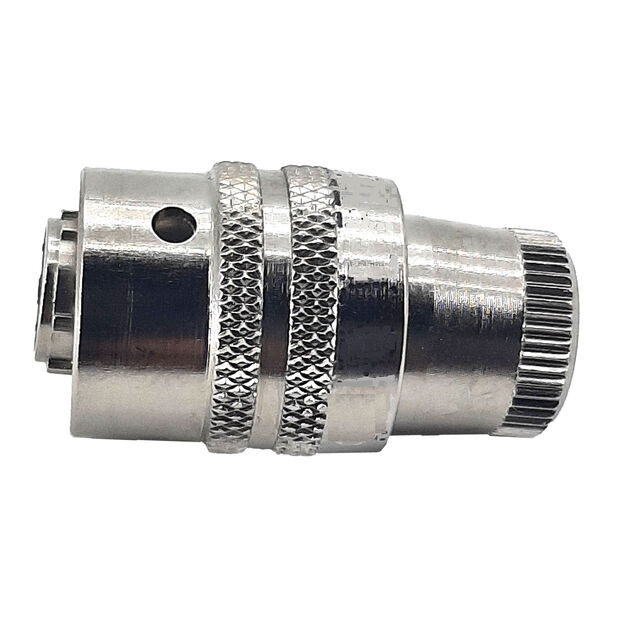

MSW06E20-39P-44
ActiveMilspecwest, LLC
PLUG, ENVIRONMENTAL, ELEC NICK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSW06E20-39P-44
ActiveMilspecwest, LLC
PLUG, ENVIRONMENTAL, ELEC NICK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSW06E20-39P-44 |
|---|---|
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Current Rating (Amps) | 13 A, 7.5 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | Environment Resistant |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 39 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Finish | Electroless Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert [Max] | 39 |
| Shell Size - Insert [Min] | 20 |
| Termination | Solder |
| Voltage Rating | 800 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 31.45 | |
| 10 | $ 29.56 | |||
| 25 | $ 27.68 | |||
| 100 | $ 25.79 | |||
Description
General part information
MSW06E20-39P-44
39 Position Circular Connector Plug, Male Pins Solder
