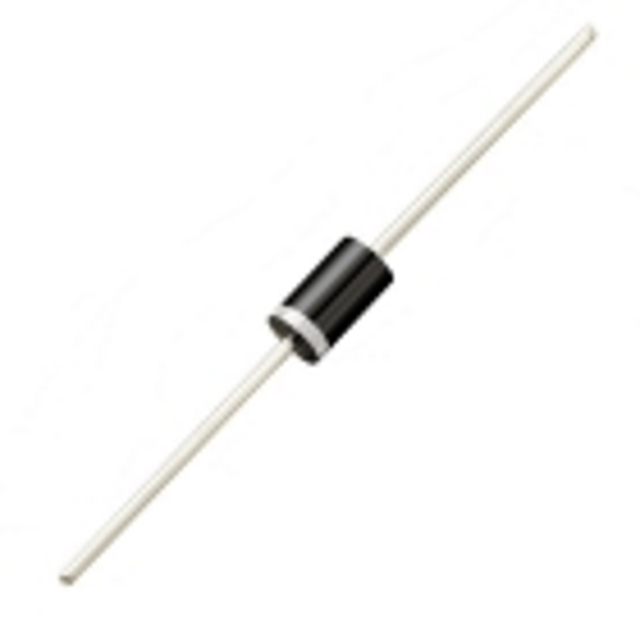

FR302-B
ActiveRectron USA
DIODE GEN PURP 3A DO201AD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FR302-B
ActiveRectron USA
DIODE GEN PURP 3A DO201AD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FR302-B |
|---|---|
| Capacitance @ Vr, F | 65 pF |
| Current - Average Rectified (Io) | 3 A |
| Current - Reverse Leakage @ Vr | 10 µA |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | DO-201AD, Axial |
| Reverse Recovery Time (trr) | 150 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | DO-201AD |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.15 | |
Description
General part information
FR302-B
Diode 3A Through Hole DO-201AD
