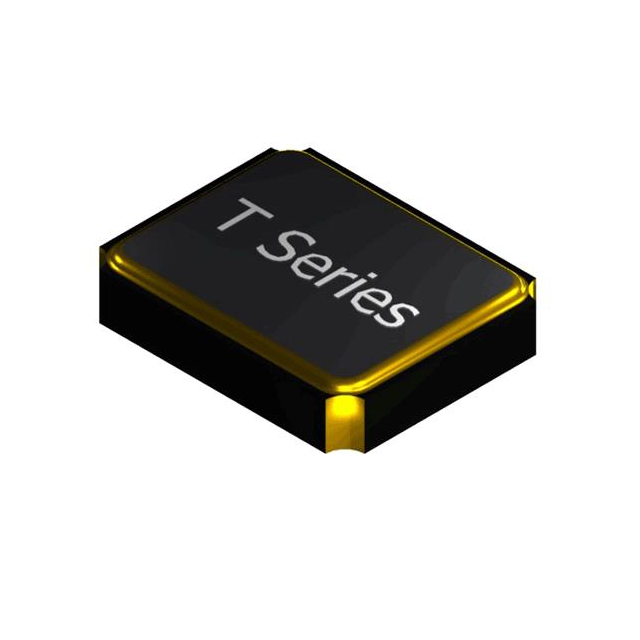

T10GC1-20.000MHZ-T
ActiveMMD
CRYSTAL 20.0000MHZ 10PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T10GC1-20.000MHZ-T
ActiveMMD
CRYSTAL 20.0000MHZ 10PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T10GC1-20.000MHZ-T |
|---|---|
| ESR (Equivalent Series Resistance) | 80 Ohm |
| Frequency | 20 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) [Max] [z] | 0.03 in |
| Height - Seated (Max) [Max] [z] | 0.75 mm |
| Load Capacitance | 10 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3.45 mm |
| Size / Dimension [x] | 0.136 " |
| Size / Dimension [y] | 2.75 mm |
| Size / Dimension [y] | 0.108 " |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Reel® | 1 | $ 0.53 | |
| 10 | $ 0.46 | |||
| 50 | $ 0.41 | |||
| 100 | $ 0.39 | |||
| Tape & Reel (TR) | 1000 | $ 0.32 | ||
Description
General part information
T10GC1-20.000MHZ-T
20 MHz ±10ppm Crystal 10pF 80 Ohms 4-SMD, No Lead
